[Main technical parameters] | |

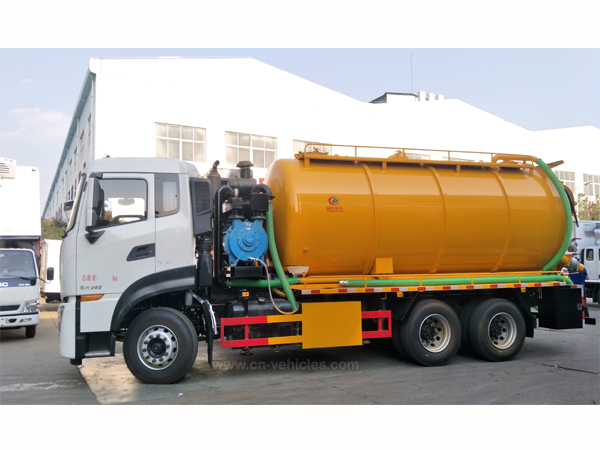

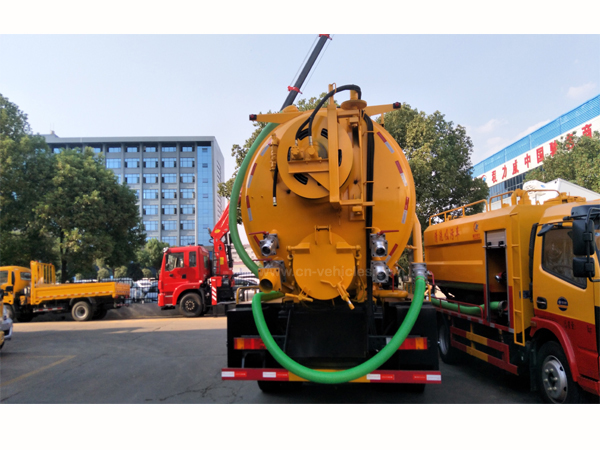

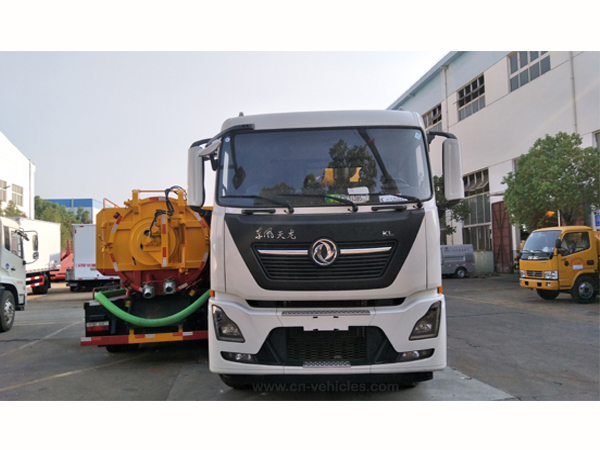

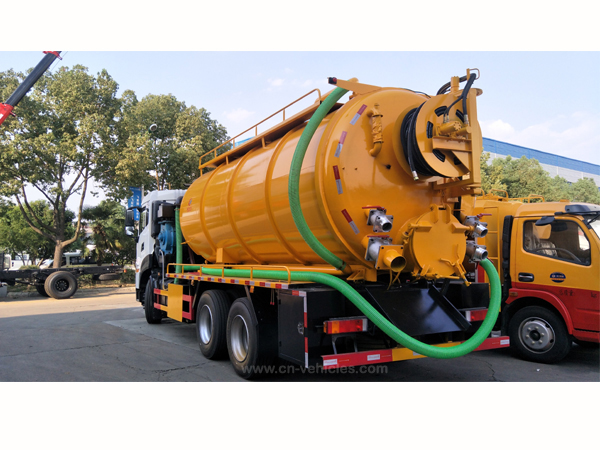

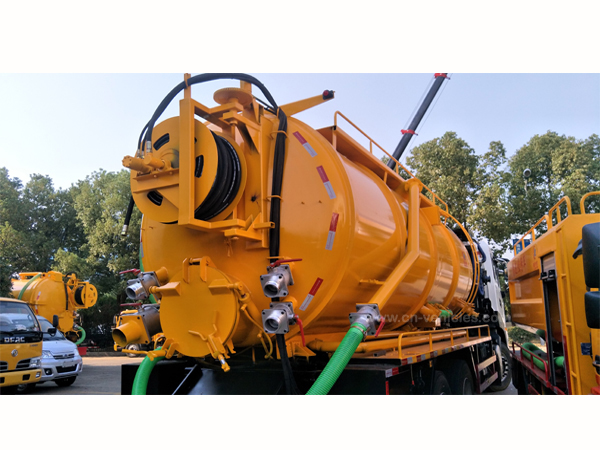

Product name | Sewage truck |
Total mass (kg) | 25000 |
Rated mass (kg) | 11800 |
Cube weight (kg) | 13005 |
Drive type | 6x4 |
Overall size (mm) | 9300x2500x3600 |
Cargo size(mm) | ×× |
Passengers(person) | 3 |
Maximum speed (km/h) | 90 |
Approach/Departure angle (°) | 28/20 |
Front/rear suspension (mm) | 1440/2210,1250/2400 |
Number of axles | 3 |
Wheelbase (mm) | 4350+1300,5400+1300,5900+1300,4750+1300 |
Axles load(kg) | 7000/ 18,000 (biaxial group) |
[Chassis technical parameters] | |
Number of tires | 6+1 |
Tire specifications | 11.00-20 18PR,11.00R20 18PR |
Front track (mm) | 1940,1965,1985 |
Rear track (mm) | 1860/1860 |
Fuel type | diesel |
Emission Standards | EURO 3 |
[Engine parameters] | |
Engine Model | YC6JA240-50 |
Engine manufacturer | Guangxi yuchai machinery co. LTD |
Displacement (ml) | 6870 |
Power (kw) | 240 |
Comments | Options with the chassis cab. Effective volume of tank: 15.48 cubic meters, medium: a liquid waste, shape of tank size (diameter straight long x) (mm) : 5600 x 5600. The car body color optional. Lientang protection using Q235 material welding connection, the back of the protective section size (mm) : 50 * 120, and at the back of the protective ground height (mm) : 450 |
