Sinotruck howo 336hp 10000Liters Water Tanker and 2000liter Foam Tanker Fire Fighting Engine
  • Sinotruck howo 336hp 10000Liters Water Tanker and 2000liter Foam Tanker Fire Fighting Engine
  • Sinotruck howo 336hp 10000Liters Water Tanker and 2000liter Foam Tanker Fire Fighting Engine
  • Sinotruck howo 336hp 10000Liters Water Tanker and 2000liter Foam Tanker Fire Fighting Engine
  • Sinotruck howo 336hp 10000Liters Water Tanker and 2000liter Foam Tanker Fire Fighting Engine
  • Sinotruck howo 336hp 10000Liters Water Tanker and 2000liter Foam Tanker Fire Fighting Engine
  • Sinotruck howo 336hp 10000Liters Water Tanker and 2000liter Foam Tanker Fire Fighting Engine

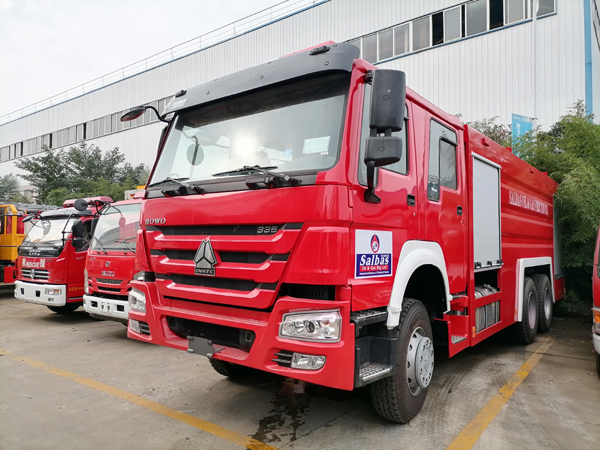

Sinotruck howo 336hp 10000Liters Water Tanker and 2000liter Foam Tanker Fire Fighting Engine
Sinotruck howo Fire Fighting Engine (also called 17.4CBM Fire fighting trucks, sinotruck howo City fire rescue vehicle, 12 wheels Water-foam Fire truck, 8x4 Industrial fire fighting trucks, sinotruck howo fire trucks) is apply for fire brigade of large and medium city, petrochemical enterprises, airports and harbors and so on, to put our large area fire of oil and other substance. We can supply water fire truck, foam fire truck, Foam and powder fire vehicle, Emergency fire truck, Fire pumper, Industrial fire vehicle, CAFS fire trucks and so on.

Description Get quotation

Sinotruck howo 336hp 10000Liters Water Tanker and 2000liter Foam Tanker Fire Fighting Engine

Sinotruck howo Fire Fighting Engine (also called 17.4CBM Fire fighting trucks, sinotruck howo City fire rescue vehicle, 12 wheels Water-foam Fire truck, 8x4 Industrial fire fighting trucks, sinotruck howo fire trucks) is apply for fire brigade of large and medium city, petrochemical enterprises, airports and harbors and so on, to put our large area fire of oil and other substance.
 We can supply water fire truck, foam fire truck, Foam and powder fire vehicle, Emergency fire truck, Fire pumper, Industrial fire vehicle, CAFS fire trucks and so on.
All our fire trucks with huge fire equipment and you can put fire-fighting immediately.
Sinotruck howo 336hp 10000Liters Water Tanker and 2000liter Foam Tanker Fire Fighting Engine Key Features:
  ----Sinotruck howo chassis, perfect performance
----Sinotruck howo engine & gearbox, super powerful, no overhaul within 100,000 km.
---- Water tank and Foam tank capacity can be optional.
---- Easy operation and easy maintenance.
---- Various types of fire equipment are available.

Sinotruck howo 336hp 10000Liters Water Tanker and 2000liter Foam Tanker Fire Fighting Engine Technical date :
Item Specifications Item Specifications
Truck
Name 12 ton Steyr Water Fire Truck Euro3
Model CLW5291GXFSG150 Gross Weight 13050kg
Overall dimensions 3125×2300×1600mm Curb Weight 11500kg
Wheelbase 4325+1350mm Approach/departure angle 15°
Front Track 2022mm Departure Angle 12°
Rear Track 1830/1830mm Front Overhang 1560mm
Number of axles 3 Rear Overhang 2575mm
Max speed 85km/h Number of Tyres 10
Traction system 6×4 Tyre 11.00-20
Transmission Sinotruk, manual Allowable Cab Passengers 2+4
Chassis
Model ZZ1256M4646C Leaf Spring 9/12
Engine (Motor)
Brand Sinotruk Type Diesel
Model WD615.92E Displacement 9.7L
Horse power 196 Emission standard Euro 3
Equipment
Tanker(ton) Water:11.5 Tank Material stainless steel
Flow 60kgL/S Low Pressure Pump CB10/40
Pressure 1.0MPa Fire distance (water) Water≥55m
Remarks
Production cycle 25-35 working days
Warranty 12 months
