Iveco Yuejin Light Truck 3000L Water Cart Water Tank Truck

Tank volume is 3-30M3,watering tank with pump,when water truck is transporting drinking water , inner face must make anti-corrosive paint.

Water tank truck is used for garden environment-keeping, Municipal maintains, area virescence, road building, large government department transporting drinking water.

Description Get quotation

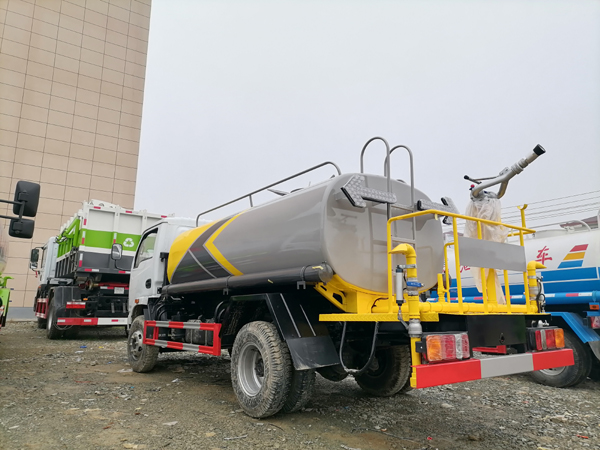

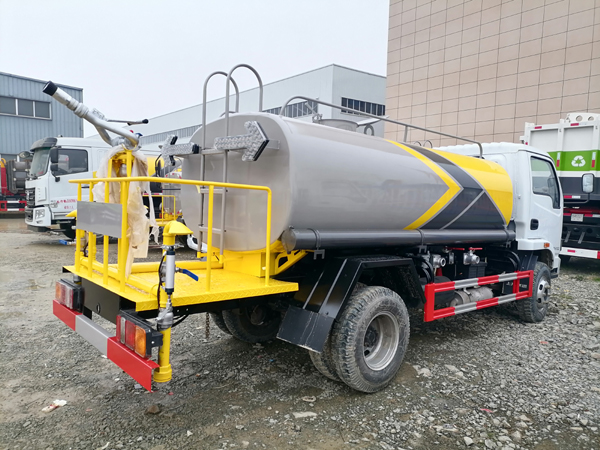

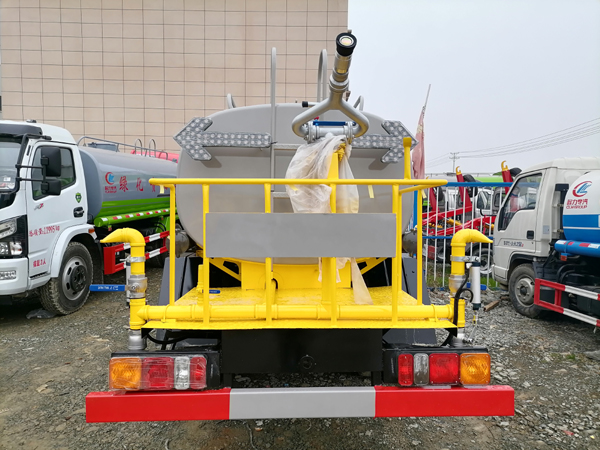

IVECO Yuejin Light Truck 3000L Water Cart Water Tank Truck

1. Water truck Brief introduction:

Tank volume is 3-30M3,watering tank with pump,when water truck is transporting drinking water , inner face must make anti-corrosive paint.

Water tank truck is used for garden environment-keeping, Municipal maintains, area virescence, road building, large government department transporting drinking water.

2. 3-30T water tank truck advantage :

(1). More type for choosing.

(2). Specialized in water truck 10 years

(3). A competitive price.

(4). With certificate of CCC,ISO9001,BV,SGS,etc.

(5). Chassis could choose DFAC,DONGFENG,FOTON,SINOTRUK,SHACMAN,JAC,Northbenz,JMC,I-S-U-Z- U,Style,CAMC,FAW,JAC,IVECO,etc.

(6).Engine could choose Commins,Yuchai,Changyang,Weichai,Sinotruk,etc.and the horse power could choose by the chassis and your requirement.

(7). The tank volume is 3000-30000L

(8). Material:carbon steel or stainless steel

(9) .Produce as you requirement

3. Water tanker truck Special function details:

A. Front (rear ,side)sprinkler :sprinkling width is more than 14m

B. Rear working platform with water cannon: range is more than 28m

C. Pump(optional)

a. 65QZ40/45 ,flux(m3/h):40,rating speed(r/min):660,pumping head(m):45,self-suction height(m):6.5,

b. 80QZ60/90,flux(m3/h):60,rating speed(r/min):1000,pumping head(m):90,self-suction height(m):6.5.

D. Water truck Material: high quality carbon stell,use 4mm to 6mm.

E. Water truck Structure: welding, there is clapboard inner when fill drinking water.

4. Water tank truck specificattion:

Truck Technical Specification
Type	4*2 Water Tank Truck
Brand	IVECO
Cab	Yuejin,single row, with A/C
Vehicle Description
Overall dimensions(mm)	520019002100
G.V.W (kg)	6000
Curb weight(vehicle) (kg)	2500
Loading capacity (kg)	3000-5000
Max speed (Km/h)	90
Engine Description
Engine model	YN4100
Maximum power	90hp
Displacement (lit)	3000-4000
Emission standard	GB 3 (optional :GB4,GB5)
Chassis Description
Wheel base(mm)	3300
Type of fuel	Diesel
Gear box	5-speed with over drive
Brake system	Air braking
Operation control system	Steering wheel
Electric system	24V
Tyres&Tire quantity	6.50-R16
Cargo Body Description

Fact volume:3-5M3
Thickness:4mm
Material: Q235 carbon steel ,Optional: stainless steel
Equipped with front(rear, side)sprinkler(sprinkling width>14m )
Equipped with rear working platform with water cannon (range>28m)
Equipped with Wei Long pump(suction lift>6m)
Equipped with fire valve, water valve, and filter gauze

6. Truck more optional:

---Tank volume: 3000 ~ 30000 liters

---Tank material : carbon steel , stainless steel

---Steering control : Left hand drive ( LHD ) / Right hand drive ( RHD )

---Drive type : 4x2 ~ 4x4 ~ 6x2 ~ 6x4 ~ 6x6 ~ 8x4 ~8x8

---Emission standard: Euro 1 , Euro 2 , Euro 3 , Euro 4 , Euro 5

---Truck brand : DONGFENG , SINOTRUK , SHACMAN , FOTON , FAW , BEIBEN , JAC , IVECO , JMC , YUEJIN , HINO , UD , ISUZU etc.
