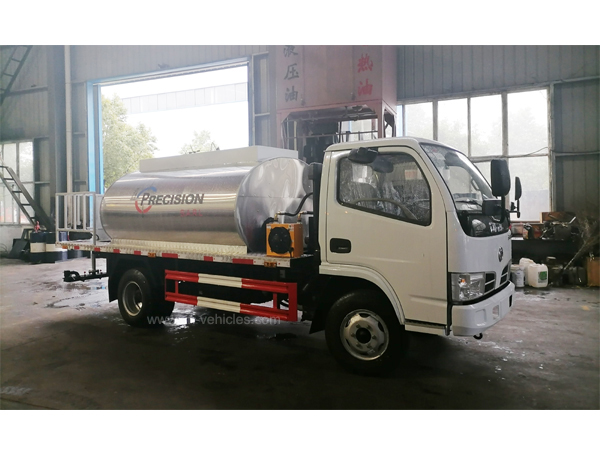

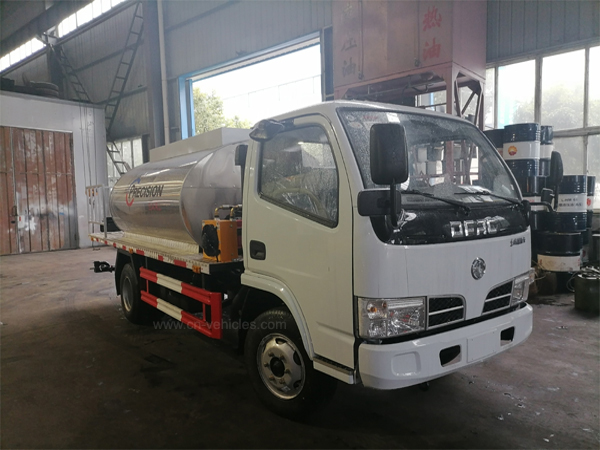

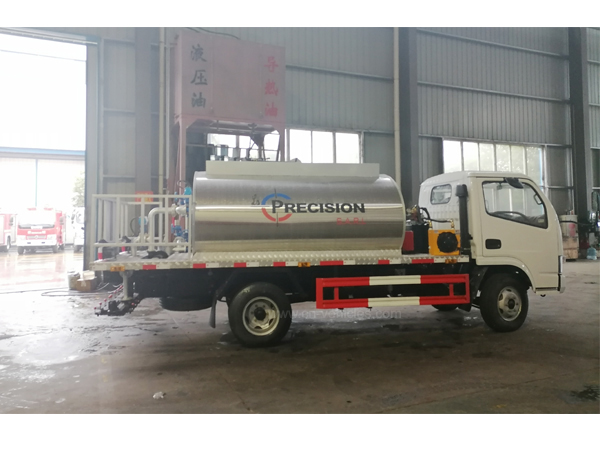

Dongfeng DFAC 3CBM 4CBM 5 CBM Asphalt Spray BITUMEN SPRAYER

ITEM

UNIT

PARAMETER

Overall dimensions

mm

7400x2280x2550

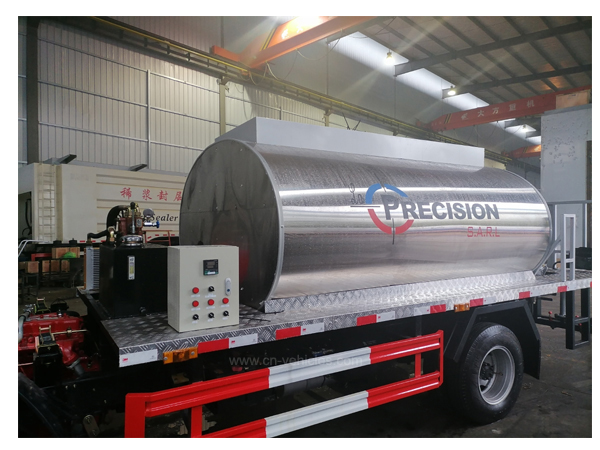

Tank inside volume

mm

2580/1340/950 ellipse

GVW

kg

Appro×12200

Curb weight

Appro×6200

Payload

Appro×6000

Wheel base

mm

3300 /3800

F/R track base

1740/1610

Approach/departure angle

°

19/13

Suspension

mm

1130/2450

Max speed

km/h

95

Drive system

4x2

Steel

Power, sino

Tire specification

7.50r16/7 units

Number of axles

2

Engine model

Manufacturer

Dongfeng Chaoyang Chaoyang Power Co., Ltd.

/

CY4102-E3C

Emission/kw

3856ml/88Kw, 120Hp

type

Five gear transmission

Remark

Manuel control, need setting the spray date at the rear of the truck before work.

Intelligent configuration asphalt truck

Bitumen Pump

Model

QGB680(high viscosity, made in China)

Displacement(L/min)

680

Hydraulic System

Country of Origin

China

Hydraulic Motor Model

05-130-BD31

Hydraulic pump

CBQ550-L

Place of Origin

Yuci, Shanxi

Radiator Brand

Risheng

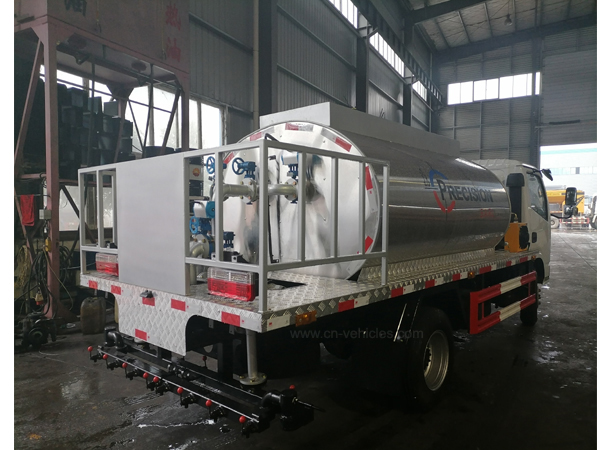

Sprayer

Spraying Material

Hot asphalt, hot modified asphalt, cutback asphalt, emulsified asphalt, rubber modified asphalt

Spraying Width (m)

Max 4.5

No. of Intelligent Spray Nozzles

36

Burner

Model

G10(Made in Italy)(200000 kcal/h)

Thermal Oil Pump

Model

40-25-160(Made in China)

Gasoline Engine

Power(kw)

5.5(Made in China)

Control Mode

Manual operation, one control one.

Heating-up Mode

Self-Heating by Thermal Oil
