Sinotruck Howo 10 Tyre 12cbm Synchronous Chip Sealer For Make Road

Our company is appointed by the Ministry of Industry and Information of China which is a manufacturer for producing all kinds of special trucks, and the synchronous chip sealer is one of our trucks with multiple functions. It is widely used on different road construction.

Description FEEDBACK

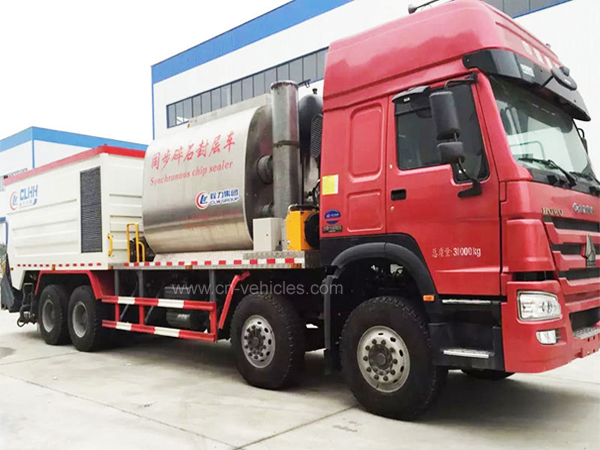

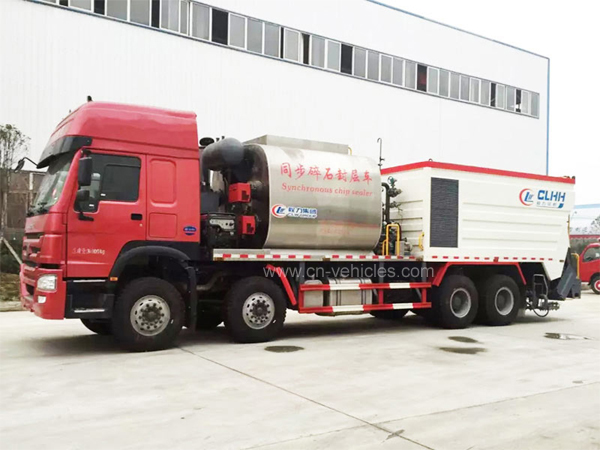

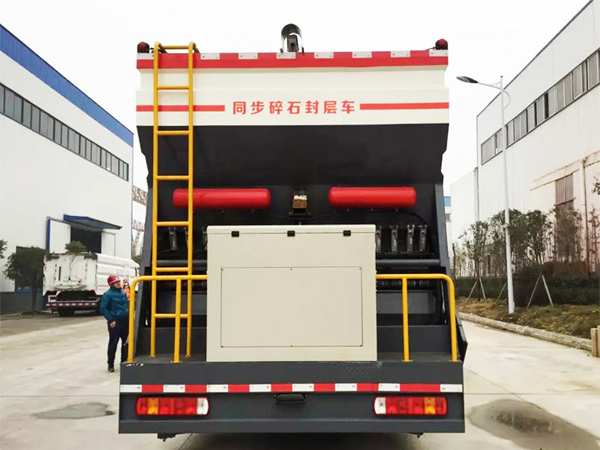

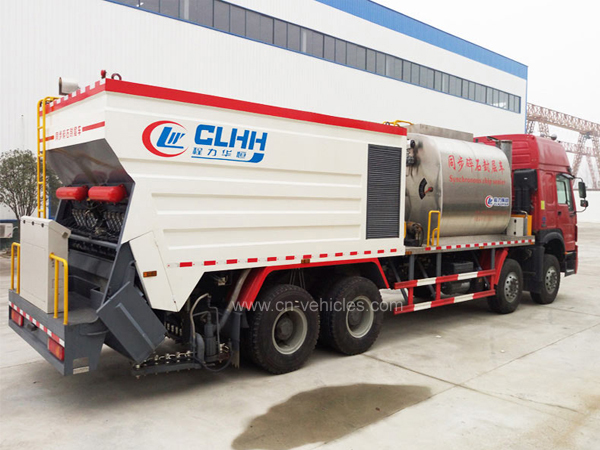

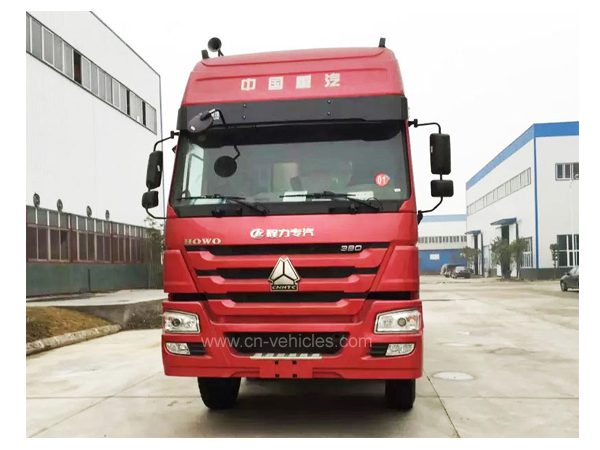

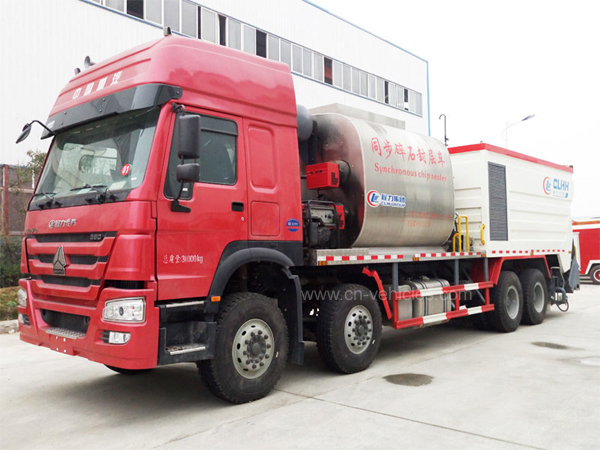

Sinotruck Howo 10 Tyre 12cbm Synchronous Chip Sealer For Make Road

Our company is appointed by the Ministry of Industry and Information of China which is a manufacturer for producing all kinds of special trucks, and the synchronous chip sealer is one of our trucks with multiple functions. It is widely used on different road construction.




1. It narrows the time for spraying binder and spreading aggregate which makes the aggregate particles inserted to the binder to achieve more covering area.
2. It can guarantee the stable ratio for the binder and aggregate chip, improve the operation rate, reduce the machine configuration and lower the construction cost.
3. After sealing for the asphalt road, it is of better anti-skip and water proof performance which can handle the lack of oil, aggregate dropping, slight crack, etc trouble.
4. This technology is widely used whenever normal road or high way.
5. It is of best anti-water and best anti-skip performance, and it can be used to deal with the road crack trouble.
6. The life span can be reached 7-10 years without the loose for aggregate.



Mass parameter:



curb Weight(kg)

21200

Total Weight ( kg )

31000



Rated loading Weight(kg)

9670

Dimension(mm)

12000 × 2500
× 3730



Chassis Parameter :

Chassis Model

ZZ1317N4647C

Tyre model

12.00-20 , 12.00R20



Wheelbase (mm)

1800+4600+1350

Tread mm

2022/1830



Engine parameter :

Engine model

WD615.95

Manufacturer

China Heavy Duty Truck Group Co., Ltd.



Max.Power(kw)

247

Max. Torque(N.m)

1300/1600



Fuel

Diesel

Displacement(ml)

9726



Chip sealer specification :

Tank Capacity(m ³ )

12

Spray width

3800mm



Hydraulic pump model

CBQL-E563

Spray Value

0.5-3.0 ( Kg )



Hydraulic moto r

L2F63W2P2 ( Liyuan )

Insulation Thickness

50mm



Controller

ZM-3D

Nozzles

32



Generator(Converter)

YT6800T

Burner

G20 ( Riel-lo )



Asphalt pump

QGB450 ( Shanggui )

Chipping capacity(m ³ )

12m3
