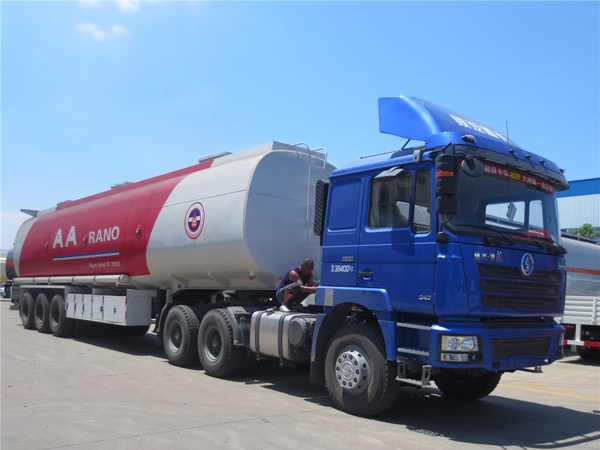

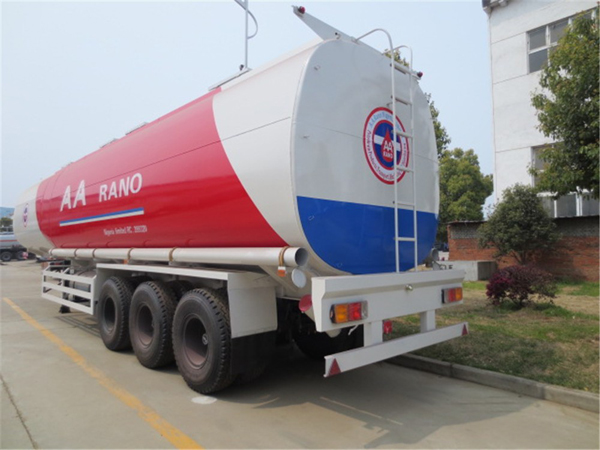

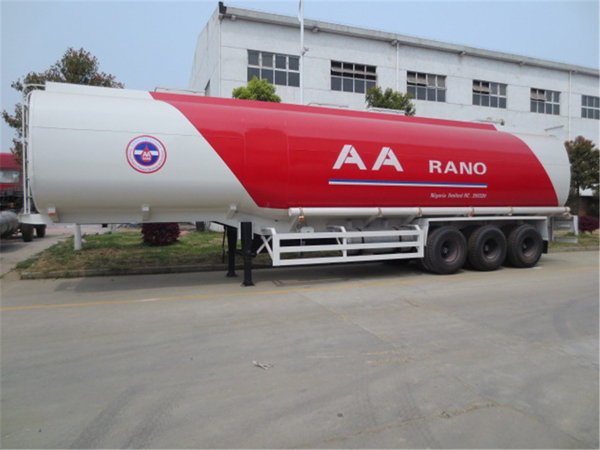

50000 liters 3 axle oil tank transport semi trailer we export to AA Rano

·         Chassis brand /

·         Product origin China, Hubei

·         Delivery time around 7 working days

·         Supply capacity 3,000 units one year

Oil tank transport semi trailer adopt carbon steel, aluminum alloy or stainless steel supplied by China state-owned steel enterprisers, and adopt BPW or China FUWA axle and BPW landing gear, ensure the overall quality

Oil tank use automatic submerged arc welding, argon arc welding, etc craft, adopt China top or European Standard or USA standard accessories, ensure oil tank accessory quality;

Making air tightness and water pressure test for every oil tank after finishing welding, at the same time, professional institutions supervision inspect the oil tank and issue oil tank inspection report. Also can introduce professional third-party inspection agencies, such as BV, TUV, SGS,etc. And in fact, our tank can pass Europe ADR Certificate.

Application and Brief Introduction:

oil tank transport semi trailer is mainly used for transportation and storage of petroleum derivatives :gasoline, diesel, crude oil, lubricating oil, coal tar and other oil products.

Description FEEDBACK

50000 liters 3 axle oil tank transport semi trailer we export to AA Rano

·         Chassis brand /

·         Product origin China, Hubei

·         Delivery time around 7 working days

·         Supply capacity 3,000 units one year

Oil tank transport semi trailer adopt carbon steel, aluminum alloy or stainless steel supplied by China state-owned steel enterprisers, and adopt BPW or China FUWA axle and BPW landing gear, ensure the overall quality

Oil tank use automatic submerged arc welding, argon arc welding, etc craft, adopt China top or European Standard or USA standard accessories, ensure oil tank accessory quality;

Making air tightness and water pressure test for every oil tank after finishing welding, at the same time, professional institutions supervision inspect the oil tank and issue oil tank inspection report. Also can introduce professional third-party inspection agencies, such as BV, TUV, SGS,etc. And in fact, our tank can pass Europe ADR Certificate.

Application and Brief Introduction:

oil tank transport semi trailer is mainly used for transportation and storage of petroleum derivatives :gasoline, diesel, crude oil, lubricating oil, coal tar and other oil products.



Product Features of 3 axle oil transport semi trailer 50000 liters

  • FUWA or BPW 3 axles;
  • FUWA or BPW landing gear;
  • JOST Kingpin
  • Optional: China standard or European Standard accessory;
  • Optional: Carbon steel, aluminum alloy, stainless steel;



Main Parameter



GENERAL DESCRIPTION

Vehicle Brand

CLW

Overall Dimension(L x W x H)

12800x2500x3850mm

GVW./Kerb Weight

40000Kg/8200Kg.

TANK BODY

Tank Shape

Elliptical or square round

Tank Volume

50000 liters

Tank Material

5mm Carbon steel , optional aluminum alloy or Stainless Steel

End Cover and Baffles

6mm end covers. One compartment with several inner baffles to reinforce the tank strength and prevent longitudinal surge during move.

Outlet Valve

Size 4” ball valves fixed with cam-lock coupling in the discharge box

Manhole

Chinastandard or European standard

Necessary Accessories

 One aluminum alloy subsea valvesone or two discharge valve, two pieces fuel pipes, one tool box;  mobile guardrail, static grounding towing tape, rear climbing ladder, various connectors and dust caps

Option

European standard oil gas recovery system

CHASSIS

Heavy duty reinforced chassis with reinforced axle. The tank’s framework consists of two fabricated steel beams of high quality 16 Manganese steel. The two beams are fully welded all over their length on the tank. The beams are strongly connected with the cross members supporting the suspension and the kingpin upper coupler.

RUNNING GEAR

Axles

BPW/FUWA brand,etc. 3x13ton axles with double wheels

Landing Legs

JOST/FUWA brand,etc. 28tons per pair

Suspension System

Steel spring suspension or air bag suspension

King Pin

JOST/FUWA brand,etc. 2inch or 3.5inch,bolted and welded type are optional

Tyre No.&Spec.

12 tires,11.00R20 steel wire tire or 12R22.5(tubeless vacuum tire)

MUDGUARDS

Heavy duty mudguard rubber mud-flaps

BUMPERS

Side bumpers mounted between landing gear and first axle, rear bumper is European standard

ELECTRIC SYSTEM

24V lighting system,electrical socket for lighting,rear lamp with parking,direction,fog,reverse, 4 side lights

PAINTING

All steel plates and structure are blasted first, then painted with two anti-corrosive primer coats and two lever top.
