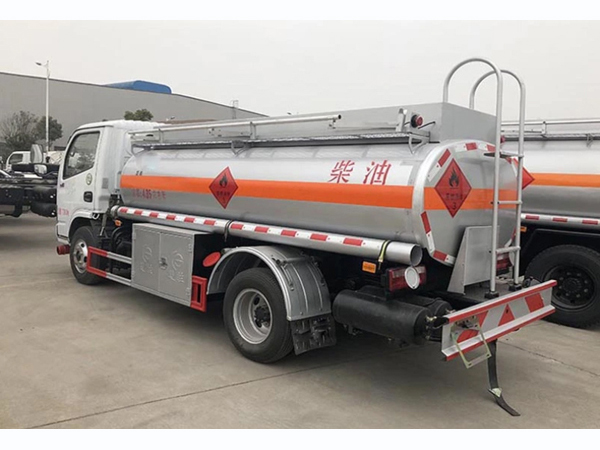

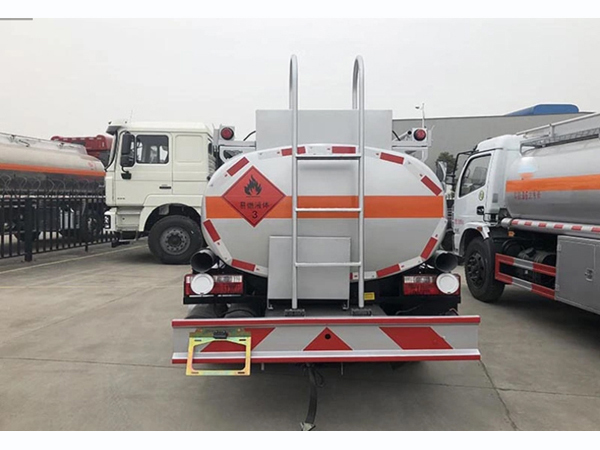

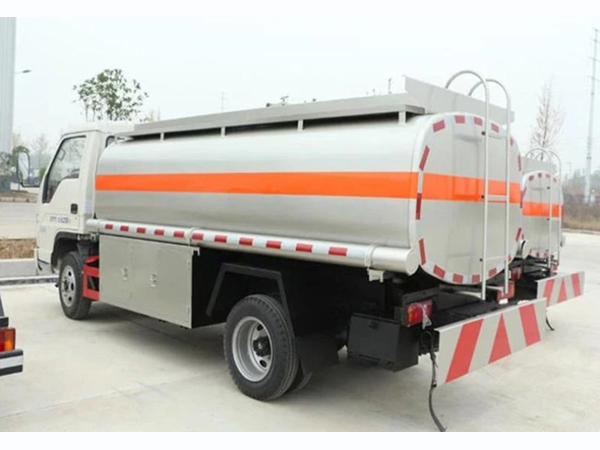

Forland 5cbm 6 wheels Rhd Fuel Oil Dispenser and Delivery Tank Truck Petrol Diesel Refueling Truck

General Technical Parameters

Overall Dimension

5990×1960×2400(mm)

Gross Vehicle Weight

8500(Kg)

Curb Weight

3365(Kg)

Chassis Specification

Chassis Brand

Forland

Drive model

4*2

Cabin

Forland D1695, Single, RHD, with air condition.

Number of Passengers

2

Engine

Model

BJ493ZLQ1/108HP, 4-stroke direct injection , 4-cylinder in-line, intercooled supercharging, with ABS.

Power

80KW/108HP

Emission standard

EURO 2

Displacement

3707(ml)

Fuel type

Diesel

Gearbox

4Forwards & 1Reverse, manual operation. With power steering.

Brake System

Oil break rotation

Wheel Base

3360mm

Front/Rear Axle Loading

2000/4000(Kg)

Tire

7.00R16, 1PC including 1 spare tire

Max Driving Speed

90(km/h)

Upperstructure Specification

Oil Tank

Effective Volume

5CBM

Transport Oil Type

Fuel

Tank Material

Q235, carbon steel( also can choose stainless steel,aluminum )

Tank Shape

Square Round

Manhole

1unit Euro Standard manhole, DN500mm

Refueling System

1. Oil pump;

2. Oil dispenser machine;

3. Hose reel with filling gun.

Others

Emergency cut-off valve, Lifting fence, electrostatic wire reel, ladder, GPS, etc.

Options

Compartments, unloading valve, flow meter, API standard manhole, oil vapor recovery, anti-overflow probe.
