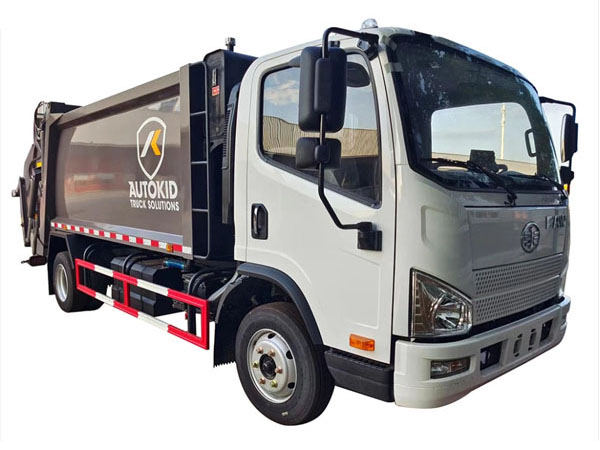

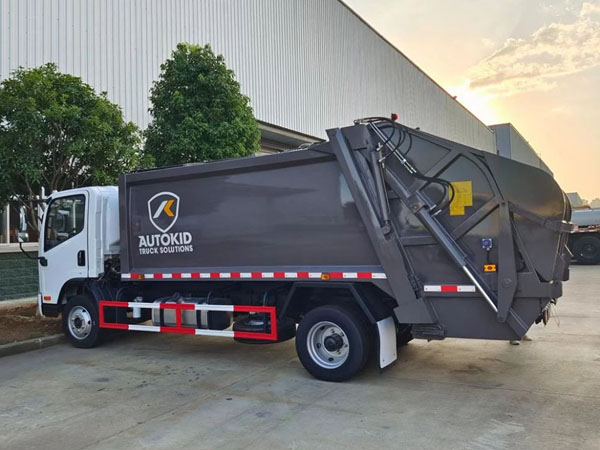

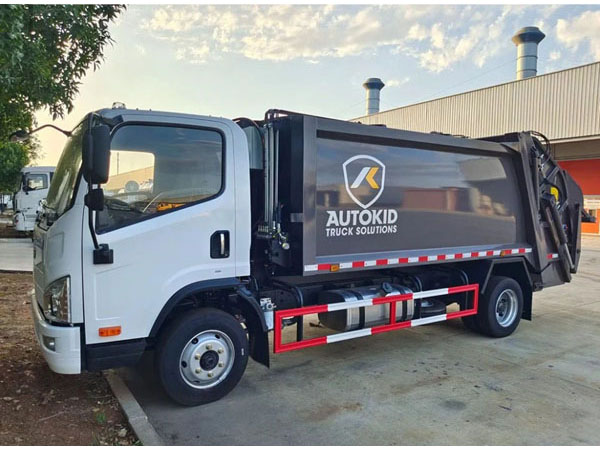

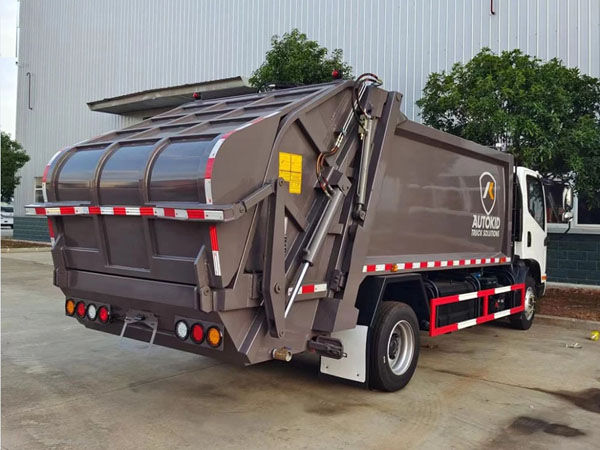

FAW 6000 Liters 6m3 LHD Rhd Small Compressed Garbage Truck for Rubbish Collection
  • FAW 6000 Liters 6m3 LHD Rhd Small Compressed Garbage Truck for Rubbish Collection
  • FAW 6000 Liters 6m3 LHD Rhd Small Compressed Garbage Truck for Rubbish Collection
  • FAW 6000 Liters 6m3 LHD Rhd Small Compressed Garbage Truck for Rubbish Collection
  • FAW 6000 Liters 6m3 LHD Rhd Small Compressed Garbage Truck for Rubbish Collection
FAW 6000 Liters 6m3 LHD Rhd Small Compressed Garbage Truck for Rubbish Collection
Garbage compactor truck (also known as Refuse Compactor, Refuse Collection Vehicle/RCV waste compactor truck, garbage compactor truck, trash compactor, refuse collection truck, compactor garbage truck,rubbish truck, bin wagon, dustcart, bin lorry, waste collection vehicle)
is a special type of urban environmental sanitation vehicle that collects and transports garbage, which can prevent secondary pollution caused by spilling  along the road. Waste collected inside the compactor is pushed out of the container through a hydraulically powered Ejection Plate. Two men (driver and operator) are required to perform the entire functionality of the compactor.
Description Get quotation

FAW 6000 Liters 6m3 LHD Rhd Small Compressed Garbage Truck for Rubbish Collection



Garbage compactor truck (also known as Refuse Compactor, Refuse Collection Vehicle/RCV waste compactor truck, garbage compactor truck, trash compactor, refuse collection truck, compactor garbage truck,rubbish truck, bin wagon, dustcart, bin lorry, waste collection vehicle)
is a special type of urban environmental sanitation vehicle that collects and transports garbage, which can prevent secondary pollution caused by spilling  along the road. Waste collected inside the compactor is pushed out of the container through a hydraulically powered Ejection Plate. Two men (driver and operator) are required to perform the entire functionality of the compactor.

Brand

FAW

Drive type

4x2

Total mass

18000kg

Capacity of garbage box

14000Liter (14m3)

Curb weight

10500kg

Overall dimension

9100×2500×3200mm

Wheel base

5800mm

F/R axle load

2640/4710kg

Quantity of leaf spring

10/12+8

Quantity of tires

6

Tyre type

10.00R20

Approach/
Departure angle

17/20°

F/R suspension

1400/2750mm

Front track

1928mm

Rear track

1878mm

Max.vehicle speed

90km/h

Passengers in cab

3

Chassis model

CA1180P62K1L2A1E6Z

Engine

Model

CA4DK1-22E6

Max.power

165kw/220HP

Displacement

4764ml

Emission level

Euro 2

Description

In line,4 cylinders,4 strokes,water cooled,inter cooled,diesel engine

Gearbox

Description

Manual,7 forward gears&1 reverse gear

Brake
system

Service brake

Double circuit pneumatic (air) brake

Parking brake

Spring-Power drum brake

Electric
system

Operating voltage

24V negative grounded

Starter

24V,5.4KW

Alternator

28V,1.5KW

Battery voltage

2X12V/165Ah

Cabin

Description

One and half rows,2 doors,luxury configuration,power steering,A/C provided

Special performance

Material of garbage box

WISCO high quality manganese steel

Thickness of garbage box

5mm

Cycle time of loading

15s

Time of unloading

≤50s

Feeding lifting angle

≥95°

Hydraulic pressure

19.6Mpa

Compression ratio

1/3~1/2
