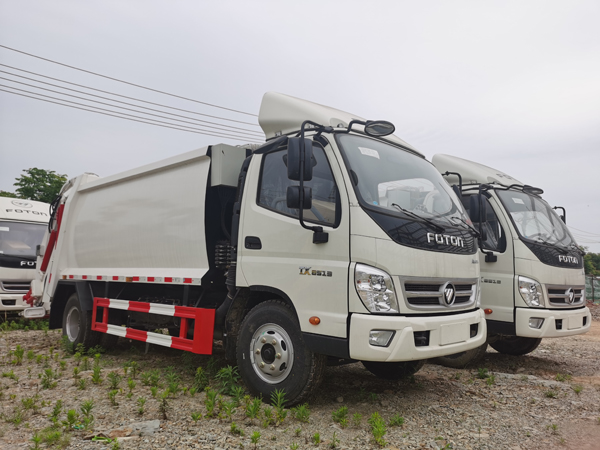

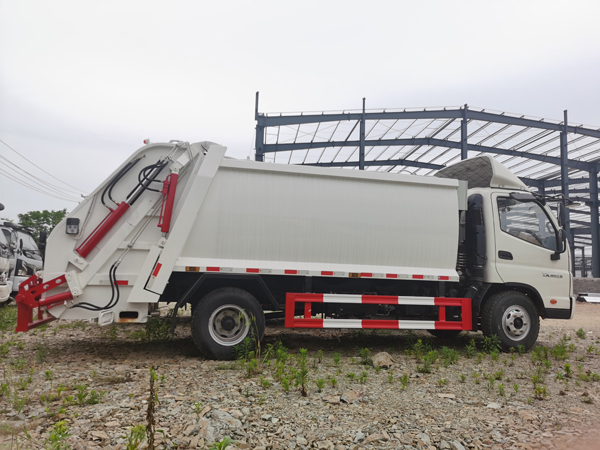

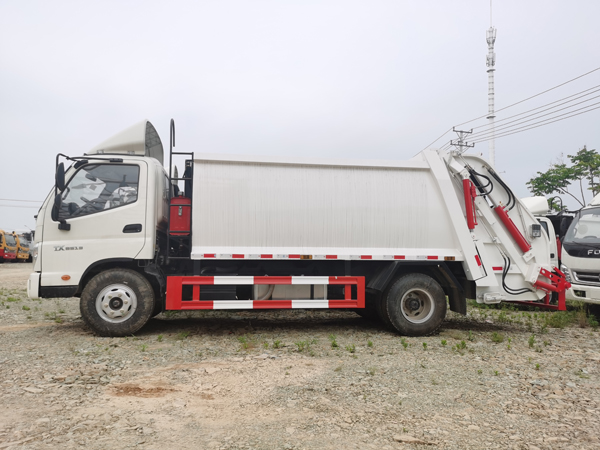

Foton 6cbm 5.4 Ton Self Loading Compaction Garbage Refuse Truck
Garbage compactor (also called waste compactor truck, garbage compactor truck, trash compactor, refuse collection truck, compactor garbage truck,rubbish truck, dustcart truck, bin lorry, waste collection vehicle) is designed to collect and transport municipal solid waste.
Garbage compactor is composed of garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.
The operation system could be manual or electrical control.
Description FEEDBACK
Foton 6cbm 5.4 Ton Self Loading Compaction Garbage Refuse Truck


Garbage compactor (also called waste compactor truck, garbage compactor truck, trash compactor, refuse collection truck, compactor garbage truck,rubbish truck, dustcart truck, bin lorry, waste collection vehicle) is designed to collect and transport municipal solid waste.
Garbage compactor is composed of garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.
The operation system could be manual or electrical control.


Foton 6cbm 5.4 Ton Self Loading Compaction Garbage Refuse Truck Chassic
CNHTC , Beiben trucks , Shacman trucks , FAW trucks , ISUZU ,Hongyan trucks,FOTON trucks , Dongfeng trucks , JAC trucks

Foton 6cbm 5.4 Ton Self Loading Compaction Garbage Refuse Truck  Technical date :

Drive type

4*2, New condition, LHD

Vehicle Main            Dimensions

(L x W x H)mm

6470×2050×2570

Wheel base  (mm)

3360

Track front/rear mm

1770/1586

F/R Axle-Load

2000/4000 kg,

Approach/departure angle

19/12

Weight in KGS

Curb Weight

5160kg

GVW

7300kg

Max. driving speed(km/h)

95

Engine

Brand

CHAOCHAI Brand,Diesel ENGINE

Model

CY4102

Type

4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling;

Horse Power(HP)

95/116

Emission standard

Euro III

Gearbox

6 forwards& 1 reverse

Clutch

Reinforced diaphragm clutch

Tire

6.50-16, 7 pc including 1 spare tire

Steering Gear

power steering, hydraulic steering with power assistance

Equipment for Garbage Compactor

Garbage Box Material

Carbon Steel Q235

Garbage Box Volume

4cbm or 5cbm

Capacity

5.4Ton

Bulk garbage

16.2CBM

Bin for 120L

20 Bin

Bin for 240L

10Bin

Garbage compactor dimension

3300X1980X1765mm

Body material

Floor plate 4mm and side plate 4mm

Waste water tank

200L

Filling container volume

500L

Filling time

8~10s

Filling cycle time

50~60s/time

Discharge time

30~40s

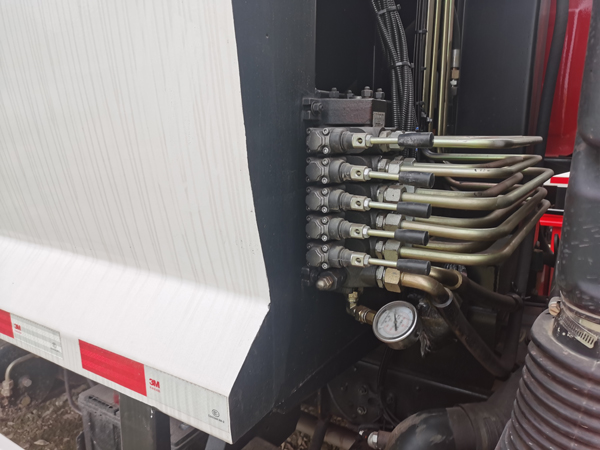

Hydraulic System

Chinese brand,consist of oil pump,oil cylinder,front valve,rear valve,pressure gauge,oil box,filter and pipelines.Front valve controls push panel and strike-off board.

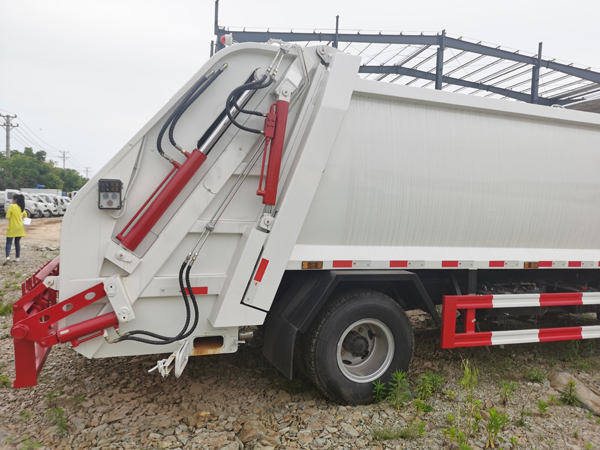

Push Panel

Used to push and squeeze garbage,works together with the skid way in the box
