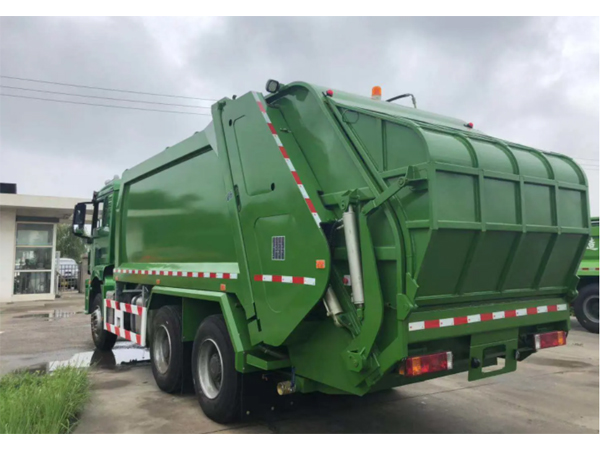

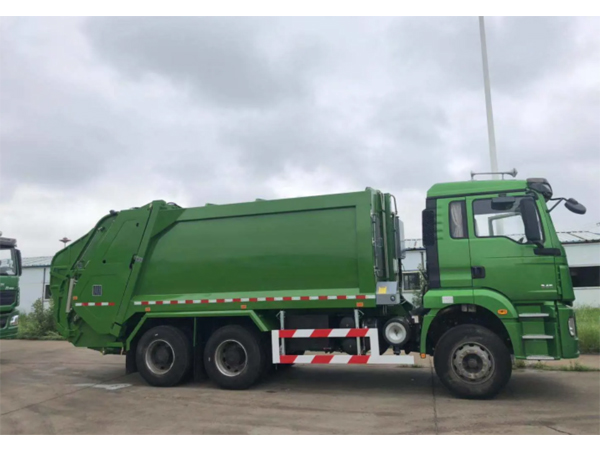

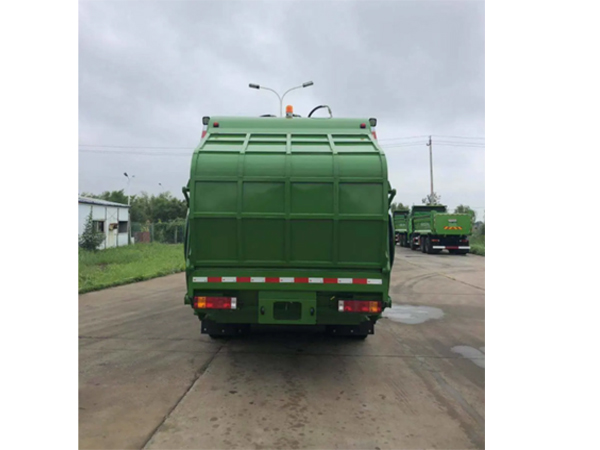

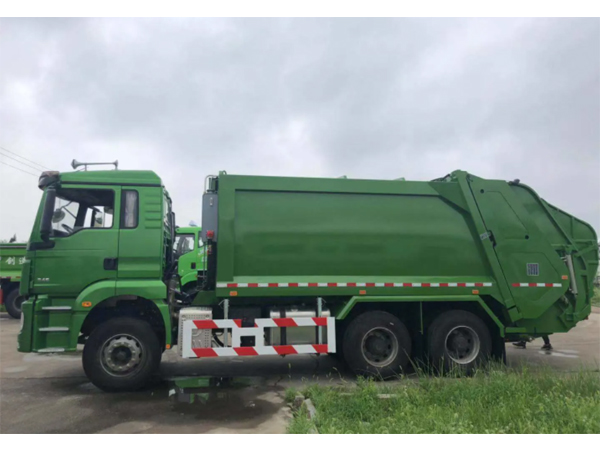

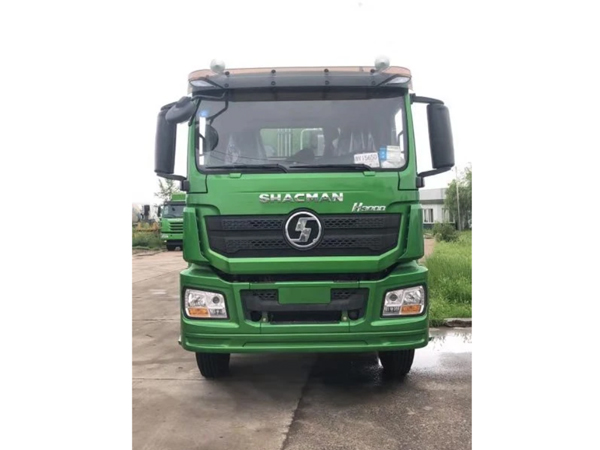

Shacman H3000 20cbm Garbage Compactor Truck
  • Shacman H3000 20cbm Garbage Compactor Truck
  • Shacman H3000 20cbm Garbage Compactor Truck
  • Shacman H3000 20cbm Garbage Compactor Truck
  • Shacman H3000 20cbm Garbage Compactor Truck
  • Shacman H3000 20cbm Garbage Compactor Truck
  • Shacman H3000 20cbm Garbage Compactor Truck
Shacman H3000 20cbm Garbage Compactor Truck
Garbage compactor (also called waste compactor truck, garbage compactor truck, trash compactor, refuse collection truck, compactor garbage truck,
rubbish truck, bin wagon, dustcart, bin lorry, waste collection vehicle) is designed to collect and transport municipal solid waste.
Description Get quotation

Shacman H3000 20cbm Garbage Compactor Truck


 Details ofSHACMAN H3000 Garbage compactor truck capacity 20CBM
(1) Functions:
Garbage compactor (also called waste compactor truck, garbage compactor truck, trash compactor, refuse collection truck, compactor garbage truck,
rubbish truck, bin wagon, dustcart, bin lorry, waste collection vehicle) is designed to collect and transport municipal solid waste.
Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down
bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing repollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.
The operation system could be manual or electrical control.

TECHNICAL SPECIFICATION
Main specification
Chassis brand
Shacman
Chassis model
H3000
Overall dimension(L*W*H)
10315×2496×3400mm
Gross / Curb weight
16,250kg / 10,100kg
Chassis
Drive modle
6x4 Left hand drive
Wheel Base
4325+1350 mm
Tyre size & number
12.00R20 radial tires , 10+1 with one spare tyre
Fuel/Engine type:
6 cylinders, in-line, 4-stroke, water cooled, turbo inter-cooling, direct injection, diesel engine
Engine model
WD615.47
Engine horse power
371HP
Emission
Euro II
Cab
HW76 a row and a half deluxe cab(with sleeping berth), allowable 3 passengers ,with A/C
Transmission
 HW19710, 10 speed forward 2 reverse.
Garbage tank
Waste box capacity
20-22 cbm
Thickness
Side: 4 mm ;  Bottom: 5 mm
Material
Carbon steel, inner epoxy anticorrosive
Function
Seal garbage truck is formed of garbage box, hydraulic system, operation system. Sewage will be put into totally the sewage box during self-compress and self-dump. With one Bucket; The imported computer control system, automatic compression and dumping function, and manual operation to guarantee and improve the usage of truck. Full sealing garbage box design can make the dirty water flow into water box directly when compressing, completely avoid secondary pollution while transporting.Also rear rolling garbage bucket or rolling garbage hopper tilting device are optional according to customers‘ demand.
