Forland Mini Freezer Truck Refrigerator Cooling Van Box for Frozen Chicken Ice Cream Meat Delivery
The  refrigerator box truck  is also called refrigerator cooling vanrefrigerator van truckfreezer truckrefrigeration truckfreezer van,freezer box truck ,  food truck refrigerator freezer,reefer van,etc.
Description FEEDBACK

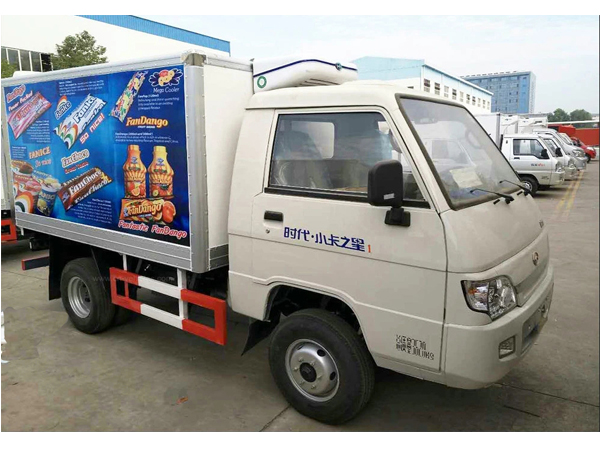

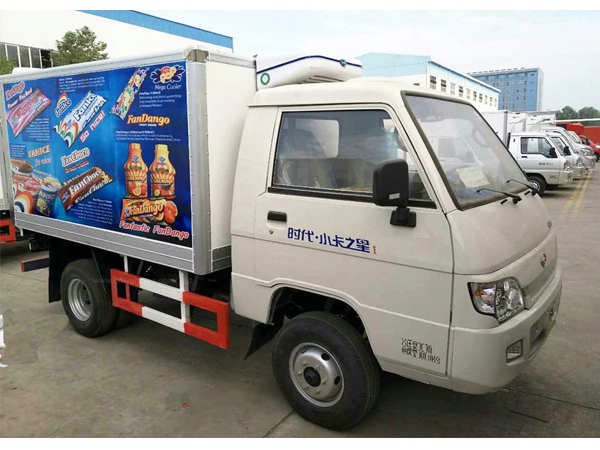

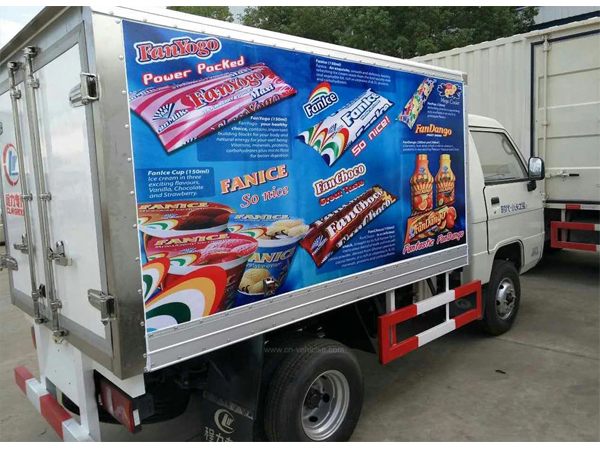

Forland Mini Freezer Truck Refrigerator Cooling Van Box for Frozen Chicken Ice Cream Meat Delivery

The  refrigerator box truck  is also called refrigerator cooling vanrefrigerator van truckfreezer truckrefrigeration truckfreezer van,freezer box truck ,  food truck refrigerator freezer,reefer van,etc.
 It is usually consisted of truck chassis, refrigeration unit, cooling van,etc. It mainly used to transport ice cream, milk , leben, frozen food,etc. The refrigerator van truck for meat and fish is equipped with meat hook on the inner roof and air trunking at box bottom of the truck.


The freezer  for truck we usually use are Thermo king, Carrier, Dongin, Hua Tai,
Han Xue,etc. The refrigerated temperature of refrigeration units are 5  degree Celsius
below zero, 10  degree Celsius below zero, 15  degree Celsius below zero, 18  degree Celsius
below zero. You also can install heating refrigerator to make the temperature above zero in bitter winter.

The material of refrigerated cold box truck can be color plate, fiberglass, stainless steel,
aluminium alloy,etc. The surface of refrigerated trucks are smooth and can be pasted with your
logo, bill, etc.

As a professional reefer box truck manufacturer, the refrigerator truck for sale is with light curb
weight, good insulation performance, waterproof, corrosion resistance,smooth surface,clean easily
and other advantages. Meanwhile, it is convenient to maintenance if box broken and without any mark after maintenance.



Description:

1. Purpose: It used for transporting frozen fish, meat, chicken, duck, fresh vegetable and vaccinum etc.
2. Main parts: Refrigerating unit and control system.
3. Features: International chassis brand and International refrigerating unit brand for optional.



Advantages of CLW refrigerator freezer van

1.Light kerb weight, large loading capacity.
2.High strength, don‘t distort.
3.There isn‘t gap between boards.good sealed performance.
4.Perfect heat preservation and  refrigeration thermal insulation performance.
5.The surface has watertightness, corrosion resistance and is easy to clean.
6.The cargo body are easy to mend and without any sign.

Technical Date:

General Technical Parameters

Overall Dimension

5200×2500×3000(mm)

Gross Vehicle Weight

6495(Kg)

Curb Weight

2900(Kg)

Loading Weight

3000(Kg)

Chassis Specification

Chassis parameters

Chassis Brand

Forland

Cabin

Single, Left Hand Driving, with A/C

Engine

Model

4 Cylinders

Power

88KW/120HP

Emission standard

EURO V

Displacement

2.999L

Fuel type

Diesel

Gearbox

5 Forward & 1 Reverse Gear

Front and Rear Axle load

2.5T/4.8T

Wheel base

3800(mm)

Overhang( Front/Rear)

1130/1505(mm)

Angle(Approach/departure)

20/16(°)

Brake System

Air brake

Steering Gear

Power Assistant

Tire

6 Pieces with 1 Spare Tire

Maximum speed

105(km/h)

Superstructure

Van

Box size

3600×2300×2100(mm)

Material

Fiberglass

Insulating Layer

8cm Polyurethane Foam


Truck refrigeration unit


Brand

THERMOKING

Model

KV300

Applicable temperature (ºC)

-18~0

Remarks

Part Optional: Ventilation slot
Hook
External power supply
Side door
