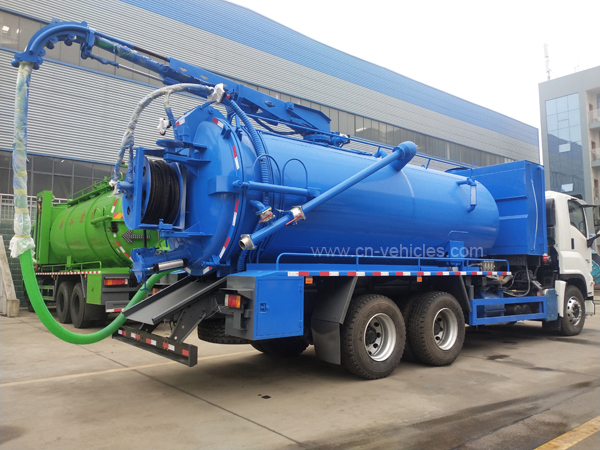

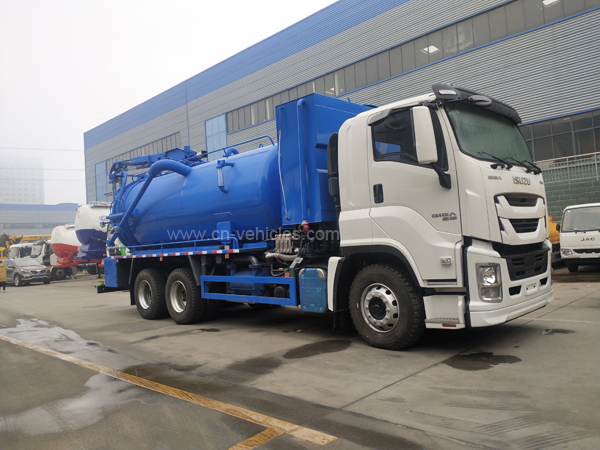

ISUZU GIGA EURO 5 10 Wheels 20CBM High Pressure Washing and Vacuum Combined Jet Sewage Suction Truck

ISUZU GIGA Sewage Suction Truck (also called vacuum tanker truck, ISUZU GIGA 6×4 vacuum sewage truck, ISUZU GIGA vacuum tanker truck, ISUZU GIGA septic cleaner truck, ISUZU GIGA sewage cleaning truck, ISUZU GIGA vacuum truck manufacturer) is used to collect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.

Description FEEDBACK

ISUZU GIGA EURO 5 6X4 20CBM High Pressure Washing and Vacuum Combined Jet Sewage Suction Truck



ISUZU GIGA Sewage Suction Truck (also called vacuum tanker truck, ISUZU GIGA 6×4 vacuum sewage truck, ISUZU GIGA vacuum tanker truck, ISUZU GIGA septic cleaner truck, ISUZU GIGA sewage cleaning truck, ISUZU GIGA vacuum truck manufacturer) is used to collect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.

 Chengli Special Automobile CO,.ltd Vacuum truck which use WEILONG or Italy BP vacuum pump, for 10CBM or more recommend Double Pump for efficiently working.

 The septic pump truck can be equipped with cabin Pneumatic Control for easy operation.



ISUZU GIGA Vacuum Truck (20 cbm)

General

Vehicle Brand

Chengli Special Automobile Co,.ltd

Chassis Brand

ISUZU

Overall Dimension

9800 * 2450 * 3550 mm

GVW / Kerb Weight

25,000kg / 10,800kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

350 HP (257 KW)

Displacement

9839 ml

Emission Standard

Euro 5

Chassis

Drive Type

6X4 (left hand drive)

Transmission

FAST 12-shift speed levers with 2 reverse

Wheelbase/No. of axle

4565+1370 mm / 3

Tire Specification

12.00R20

Tire Number

6 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Body capacity

20,000 Litres

Tanker Material

Carbon Steel

Suction Head pipeline

7 m

Vacuum Pump brand

WEILONG / Italy BP / Domestic Pump

Vacuum Pump advantage

High efficient, vacuum rate 93%,

quick suction and discharge, suction lift 6m

Hose

High quality, wire strengthened hose

Control panel

English or Your language

All standard accessories: Inlet pipeline, discharge nozzle, cabin pneumatic control box, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Standard carbon steel, stainless steel optional.

** Standard WEILONG vacuum pump, Italy vacuum pump optional
