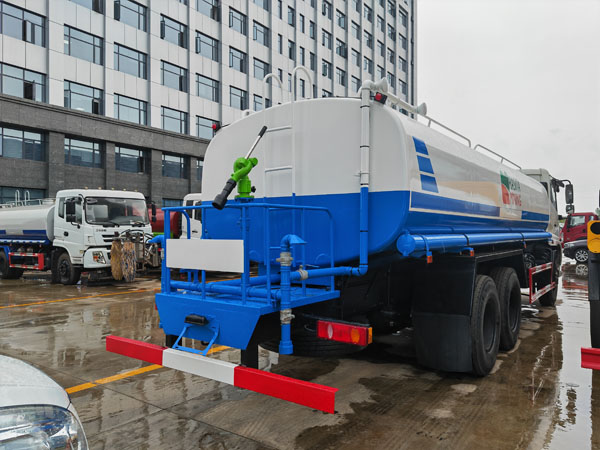

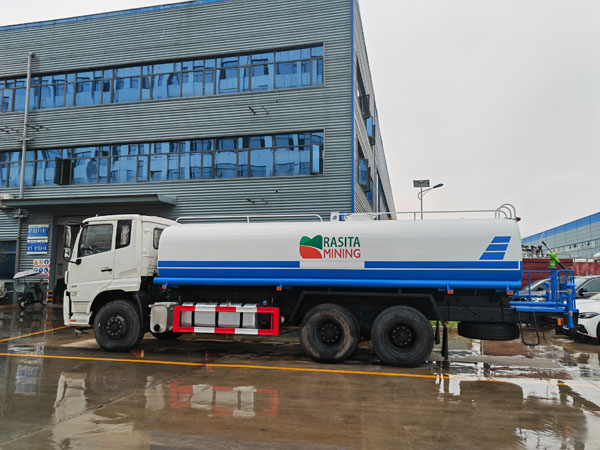

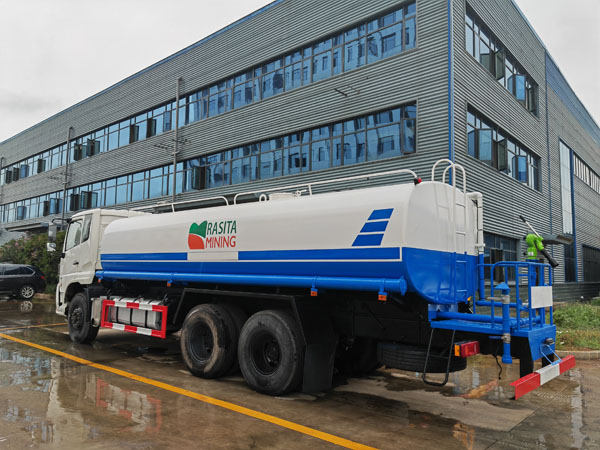

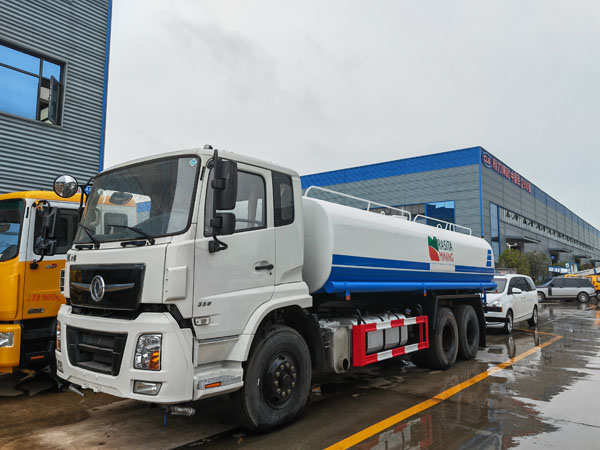

Dongfeng DFAC KR 20CBM 200000Liter Water Tanker Truck For Rasita Mining

This truck brand is Dongfeng dfac , Capacity is 20cbm 20000lIter ,product name is Water Tanker Truck , main use for Rasita Mining

Description Get quotation

Dongfeng DFAC KR 20CBM 200000Liter Water Tanker Truck For Rasita Mining

1. Optional chassis brand of portable water truck : Dongfeng, Sinotruk, FOTON/Forland, Faw, Shacman

2. Material of portable water truck :High Tension Steel Q235/Q345,stainless steel 304 for option.

3. Sprinking Width of portable water truck :>14M

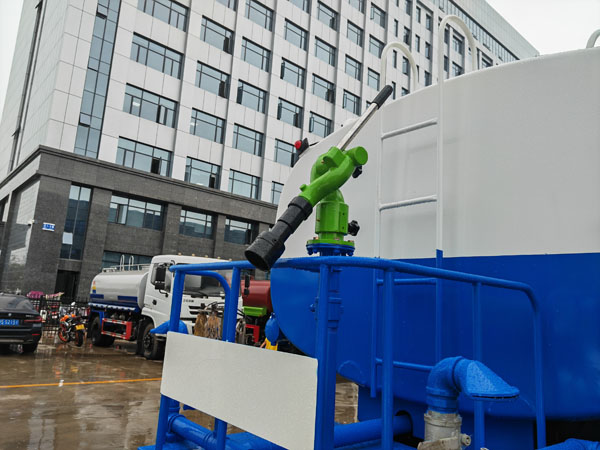

4. Rear working platform with water cannon range of portable water truck :28M

5. Reliable and high quality water pump\

TECHNICAL SPECIFICATION
Main specification	Chassis brand	DONGFENG
	Chassis model	KR
	Overall dimension(LWH)	9845x2500x3600mm
Chassis	Drive modle	6*4, left hand drive
	Wheel Base	4350+1350 mm
	Front Axle loading capacity	7000kg
	Rear Axle loading capacity	16000kg
	Tyre size	295/80R22.5, with one spare tyre
Engine	Model	L290 30
	Engine horse power	290HP
	Engine emission standard	EURO 3
TANKER PARAMETERS
Tank	Volume of water tank	18000L
	Tank thickness	4mm
	Material	Carbon steel
	Compartment	one, with internal waves baffles
	Manhole	2
Water Pump	Model	80QZB-60/90N
	Flow speed	60m3/h
	Delivery head	90m
	Suction head	6.5m
	Shaft power	22.5kw

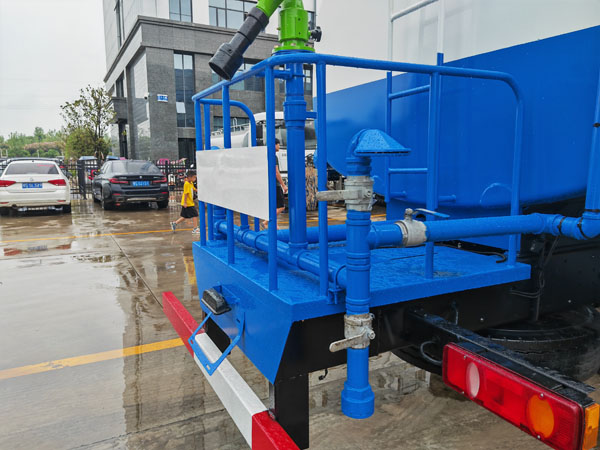

Standardard Equipment	equipped with 2 manholes, 20m hose,front duck shaped spray sprinkler and rear sprinkler, side spray, with working platform at back of truck, with 1 unit high pressure gun, which can be adjusted according to requirement, with rear lamps,and high quality watering pump, with self-suction function.
