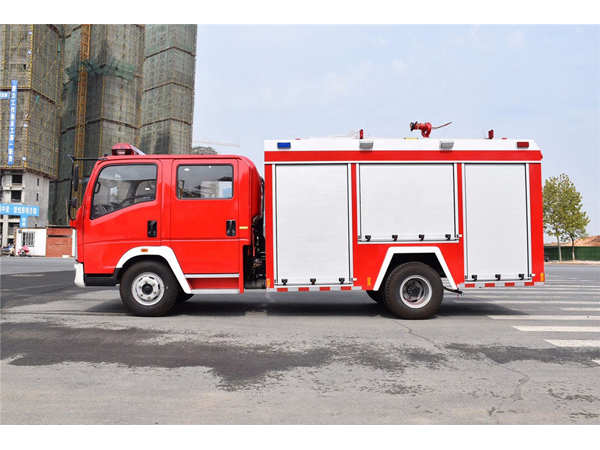

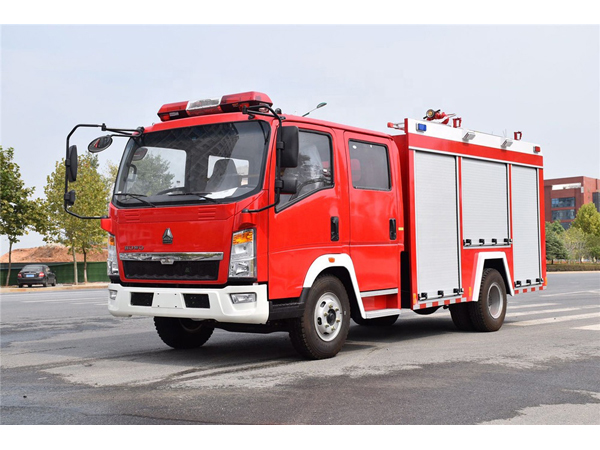

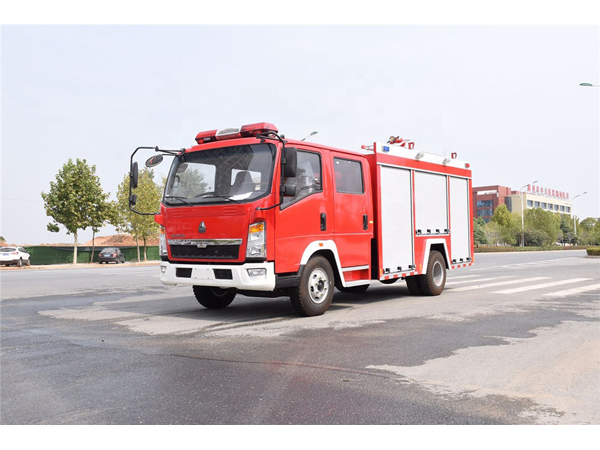

Sinotruck howo 800-1000 Gallon 3000 Liter Water Tanker Fire Truck For Sale
Foam fire truck (also called fire fighting vehicle , Fire engine , Fire fighting apparatus , Fire service truck , Fire and rescue truck , fire truck , fire fight truck , Foam fire tank truck , Fire extinguishing foam tanker ) is a vehicle designed primarily for fire fighting operation to extinguish fire efficiently to prevent fire spread , reducing the loss caused by fire maximumly .
Description
Get quotation
Sinotruck howo 800-1000 Gallon 3000 Liter Water Tanker Fire Truck For Sale
Foam fire truck (also called fire fighting vehicle , Fire engine , Fire fighting apparatus , Fire service truck , Fire and rescue truck , fire truck , fire fight truck , Foam fire tank truck , Fire extinguishing foam tanker ) is a vehicle designed primarily for fire fighting operation to extinguish fire efficiently to prevent fire spread , reducing the loss caused by fire maximumly .
Sinotruck howo 800-1000 Gallon 3000 Liter Water Tanker Fire Truck For Sale Fire fighting truck can be divided into many types :
According to vehicle size , There are mini fire fighting truck , Light fire fighting truck , Medium fire fighting truck , Heavy duty fire fighting truck .
According to chassis drive type , there are 4*2 fire fighting truck , 6*4 Fire fighting truck , 8*4 fire fighting truck , and off road type 4*4 , 6*6 fire fighting truck .
According to chassis brand , There are ISUZU fire fighting truck , Dongfeng fire fighting truck , Foton fire fighting truck , Faw fight fighting truck , Shacman fire fighting truck , Sinotruk fire fighting truck , Mercdes fire fighting truck , etc .
According to fire agent , there are water tank fire fighting truck , dry powder fire fighting truck , water / Foam fire fighting truck .
Sinotruck howo 800-1000 Gallon 3000 Liter Water Tanker Fire Truck For Sale Fire fighting truck Technical date:
|
Name
|
HOWO Fire Truck
|
Chassis Model
|
ZZ1047D3815C145
|
||
|
Vehicle parameters
|
GVW(kg)
|
9890
|
Overall Dimension (mm)
|
6995×2180×2450
|
|
|
Rated load (kg)
|
4970
|
Steering Wheel
|
LHD
|
||
|
Curb weight (kg)
|
4725
|
Wheelbase (mm)
|
3800
|
||
|
Driving Type
|
4*2
|
||||
|
Engine parameters
|
Model
|
YN4102QBZL
|
Emission Standard
|
Diesel, Euro 4
|
|
|
Horse Power（hp）
|
116
|
Displacement (ml)
|
3760
|
||
|
4 stroke,4-cylinders in line, water cooling
|
|||||
|
Gear box
|
5 forward and 1 reverse
|
||||
|
Performance Parameter
|
Max Speed (km/h)
|
105
|
Wheel Tread(mm)
|
Front Axle
|
1760
|
|
Cab Seat
|
5
|
Rear Axle
|
1595
|
||
|
Leaf Spring
|
11/9+7
|
Suspension (mm)
|
Front Suspension
|
1240
|
|
|
Tire No.
|
4+1
|
Rear Suspension
|
1955
|
||
|
Tire Specification
|
7.50R16
|
Driving Angle(°)
|
Approach Angle
|
27
|
|
|
Axle No.
|
2
|
Departure Angle
|
22
|
||
|
Special Function
|
Capacity
|
Water tank 4000L
|
|||
|
Fire Pump
|
1. CB10/30, 30L/S,pressure:1.0MPa
2.Suction time≤ 35s（7m suction depth ）centrifugal pump |
||||
|
Fire Monitor
|
1.PS30, 30L/S, pressure: 1.0Mpa
2. Fire nozzle range: water≥55m |
||||
|
Performance Description |
Double row cab with 4 doors;
Hidden tank made of carbon steel Q235A，the thickness is 4 mm; Truck body with aluminum alloy rolling door； PTO control indicator installed in cab, also with 100W siren, LED alarm lamp, sign light, lighting switch, rear lighting and etc. |
||||
