Fire Fighting TruckYou are here:HOME >> PRODUCTS >> Fire Fighting T...
Dongfeng 3 Tons 3000Liter Fire Fighting Truck

Dongfeng 3 Tons Fire Fighting Truck,can be used in many places such as in city,small town,commnity,Oil factory, mine factory,forest,harbor, port and so on.

Description FEEDBACK

Dongfeng 3 Tons 3000Liter Fire Fighting Truck



Dongfeng 3 Tons Fire Fighting Truck,can be used in many places such as in city,small town,commnity,Oil factory, mine factory,forest,harbor, port and so on.

Item

Fire Truck

Chassis Brand

Dongfeng




Vehicle parameters

GVW(kg)

6775

Overall Dimension (mm)

6115×1980×2700

Curb weight (kg)

2000

Steering Wheel

LHD

Wheelbase (mm)

3300

Driving Type

4*2




Engine parameters

Engine Brand

Dongfeng

Model

CY4100Q

Emission Standard

Diesel, Euro 3

Horse Power(hp)

82

Displacement

2771ml

4 stroke,4-cylinders in line, water cooling

Gear Box

5 forward and 1 reverse





Performance Parameter

Max Speed (km/h)

95

Front Axle

1503

Cab Seat

2+3

Rear Axle

1494

Leaf Spring

6/6+5

Front Suspension

1040

Tire No.

6+1

Rear Suspension

1759

Tire Specification

7.00-16

Approach Angle

20

Axle No.

2

Departure Angle

13




Special Function

Water tank

3000L



Fire Pump

1. CB10/20, 20L/S,pressure:1.0MPa
2.Suction time≤ 35s(7m suction depth )centrifugal pump



Fire Monitor

1.PS20, 20L/S, pressure: 1.0Mpa
2. Fire nozzle range: water≥45m



Performance Description

Double row cab with 4 doors;
Truck body with aluminum alloy rolling door;
PTO control indicator installed in cab, also with 100W siren, LED alarm lamp, sign light, lighting switch, rear lighting and etc.

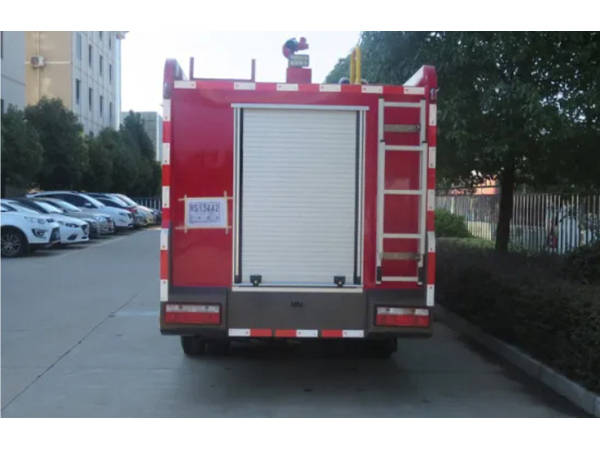

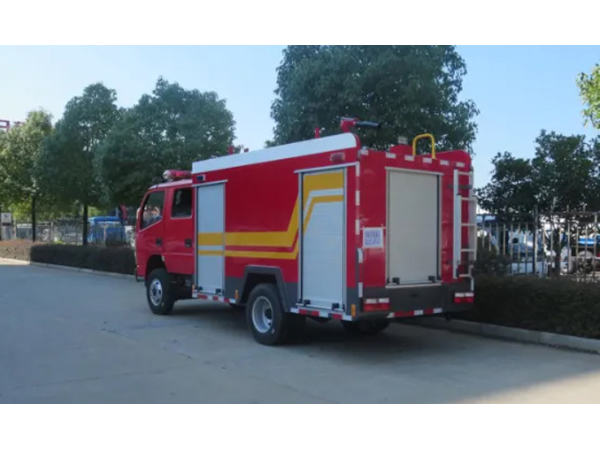

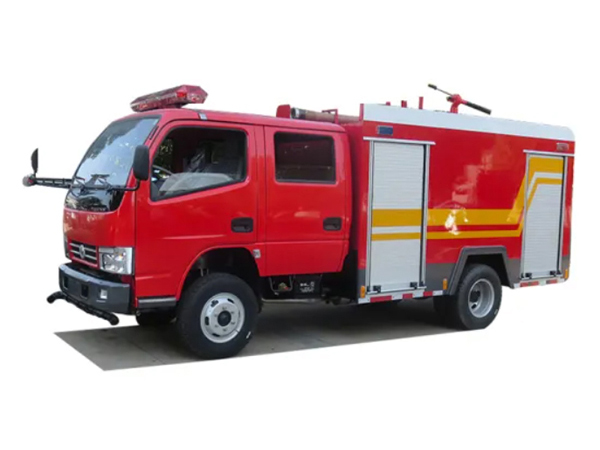

Dongfeng 3 Tons 3000Liter Fire Fighting Truck picture:

Dongfeng 3 Tons 3000Liter Fire Fighting Truck Technical date:

Dongfeng 3 Tons 3000Liter Fire Fighting Truck Testing


Working Video
