Factory Sale 15 Tons Euro 4 Dongfeng Water Tank Truck
This fire truck is made up of two parts,chassis and superstructure.The superstructure is consisted of tank,pump room,storage compartment,power take off and transmission system,pipeline system and electrical system.This fire fighting truck can be widely used in department such as fire brigade of public security,petrochemical industry,factory,forest and seaport.Firefighter can fight with fire quickly,and save life and property in time. Any questions please let us know,we will reply you ASAP.
Description FEEDBACK
Factory Sale 15 Tons Euro 4 Dongfeng Water Tank Truck

This fire truck is made up of two parts,chassis and superstructure.The superstructure is consisted of tank,pump room,storage compartment,power take off and transmission system,pipeline system and electrical system.This fire fighting truck can be widely used in department such as fire brigade of public security,petrochemical industry,factory,forest and seaport.Firefighter can fight with fire quickly,and save life and property in time. Any questions please let us know,we will reply you ASAP.

Factory Sale 15 Tons Euro 4 Dongfeng Water Tank Truck Technical date:
Name Factory sale 15 tons Dongfeng Water Tank Truck Euro 4
Item Specifications Item Specifications
Truck Parameter
Model CLW5242GXFSG110 Chassis Model QL1250DRFZY
Gross Weight (kg) 24480 Overall dimensions  (mm) 9775×2490×3560
Payload Weight (kg) 11050 Tank Volume(cbm) water 15.0
Curb Weight (kg) 12980 Wheelbase (mm) 5100+1300
Engine Parameter
Model 6HK1-TCSG40 diesel Brand Isuzu
Power/Displacement (kw/ml) 206/7790 Emission Level Euro 4
Specification
Max speed (km/h) 85 Front Track (mm) 1960
Cab 2+4 Rear Track (mm) 1855
Leaf Spring 9/10 Front/Rear Overhang (mm) 1335/1950
Number of Tyres 10 Approach /  DepartureAngle(°) 26/12
Tyre Specification 11.00-20 Axle Load (kg) 6500/17980
Number of axles 3
Special Function
Tank Capacity (L/T) water 15000L
Fire Monitor Model:PS50 rate of flow:50L/S/1MPa,water range:≥60m
Fire Pump(Normal Pressure)middle-lower pressure is optional 1. Normal pressure model::CB10/60,rate of flow:60L/s, pressure:1.0MPa
2.water diversion time ≤35s (7m absorbing depth) water ring sandwitch type full power PTO
Performance Description
complete steel frame welding structure cab, the front of crew cab is connected with driving cab; inside tank model, qualitative carbon steel material (Q235A),thickness 4mm, preservative treatment, durable in use; aluminium alloy roller shutter door,easily operate with little noise,besides the origional equipments, there are PTO indicator light, 100w alertor,LED alarm lamp, identification lamp, clearance lamp and rear lamp.

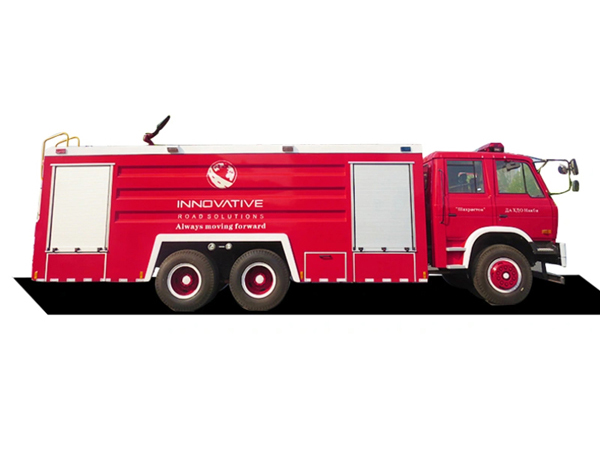

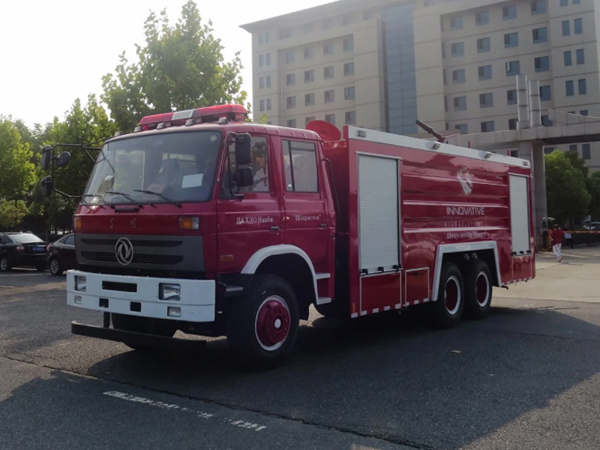

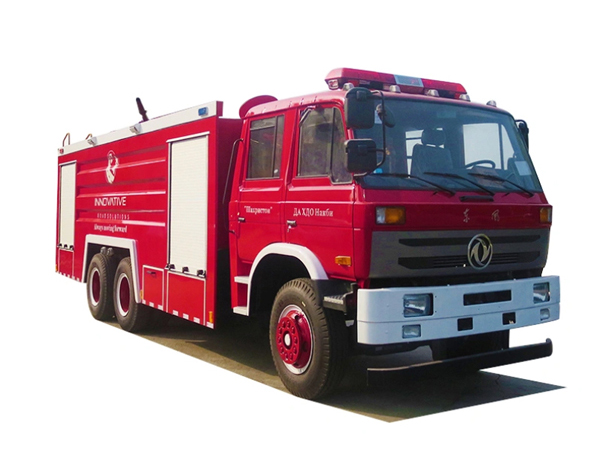

Factory Sale 15 Tons Euro 4 Dongfeng Water Tank Truck picture:



Factory Sale 15 Tons Euro 4 Dongfeng Water Tank Truck Technical date:

Factory Sale 15 Tons Euro 4 Dongfeng Water Tank Truck Testing


Working Video
