China Sinotruk Howo 6x4 Type 18tons 20tons 14tons Skip Container Garbage Truck
China Factory Supply Dongfeng 4x2 Garbage Container Truck with 14 CBM Van

1.High Quality Factory,famous professional and biggest garbage trucks manufacturer direct sale Compressed garbage truck in China;

Hook loader truck (also called roll-off garbage truck, roll on roll off truck, hook lifter truck, hook lift garbage truck, carriage removable / dismountable garbage truck, hook loader container truck, garbage collection truck  , hook lifter truck etc. ) is designed to collect and transport municipal solid waste, widely used in residence community, hospital, municipal environmental section, garbage transportation station etc.


Description Get quotation

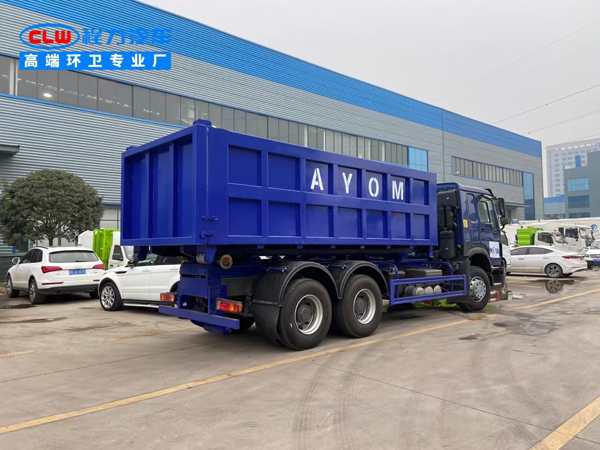

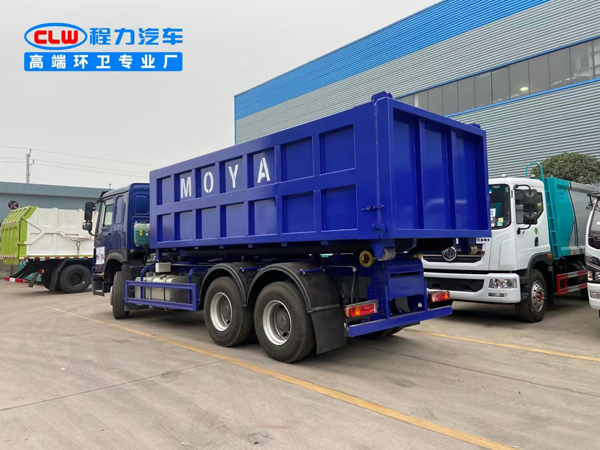

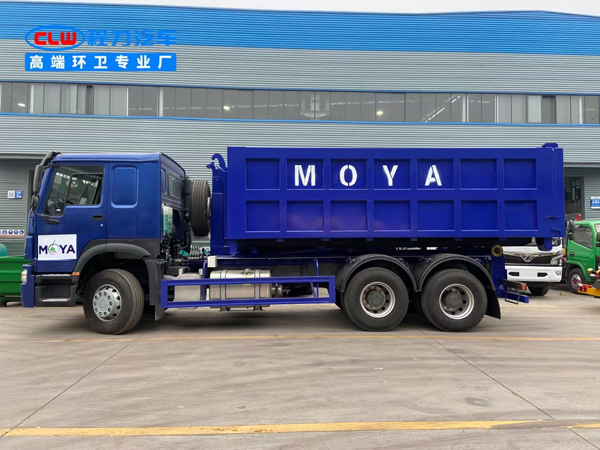

China Sinotruk Howo 6x4 Type 18tons 20tons 14tons Skip Container Garbage Truck


Hook loader truck (also called roll-off garbage truck, roll on roll off truck, hook lifter truck, hook lift garbage truck, carriage removable / dismountable garbage truck, hook loader container truck, garbage collection truck  , hook lifter truck etc. ) is designed to collect and transport municipal solid waste, widely used in residence community, hospital, municipal environmental section, garbage transportation station etc.

Loading capacity ranges from 1ton, 2tons, 3tons, 5tons, 8tons, 14tons, 18tons, 20 tons etc.

Technical Date



Product Name

Sinotruk hook lift garbage truck 18tons

Driving Type

6×4,left hand drive

Weights

Max Payload (kg)

20000

Curb weight(kg)

12340

Dimensions

Wheelbase(mm)

4325+1350

Overall Dimension(mm)

8585×2496×3080

Box dimension

18tons

Engine

 Engine model

WD615.47(371HP)

Engine type

4 stroke water-cooled,inter-cooling

No. of cylinders

straight-6 cylinders

Displacement(L)

9.726L

Rated power Rev((Kw/rpm)

273kw/2200rpm

Max Torque(N*m)/Rev(r/min)

1500/1100-1600

 Drive Line

Transmission

HW19710,10 forwards,2 reverse gear,manual operation

Steering

ZF8118,With power steering

Brake system

Air brake

Cab

Cab

HW76 new type cabin

Standard configuration

A/C;

Axle

Front axle

HF9

Rear axle

HC16

Tire specification

Tire specification

12.00R20  standard tire,10 tires+1 spare tire

Specification of hook garbage truck

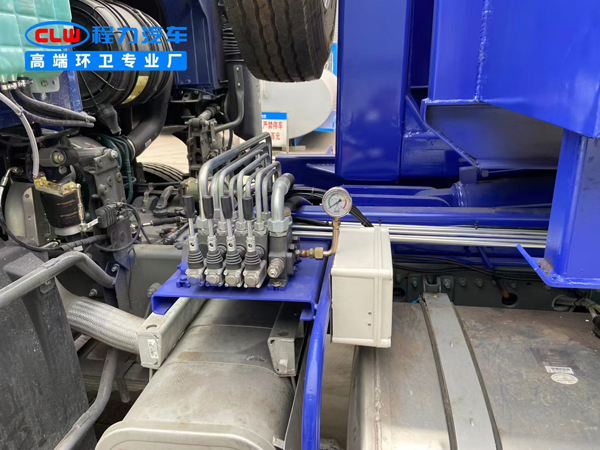

Hydraulic system

Length of body is applicable to vehicle: 5500-6400mm

Lifting height: 1570mm

Time of container loading: ≤ 40s

Tilt: ≥48°
