Sinotruck howo 10 tons Asphalt Distribution Truck Bitumen Tank Truck
Intelligent Asphalt Distributor Truck is a machine specially designed for construction and curing of asphalt road surfaces, which is widely applied in operation, such as transport and distribution of high-temperature liquid asphalt, emulsified asphalt and modified asphalt.
Description
Get quotation

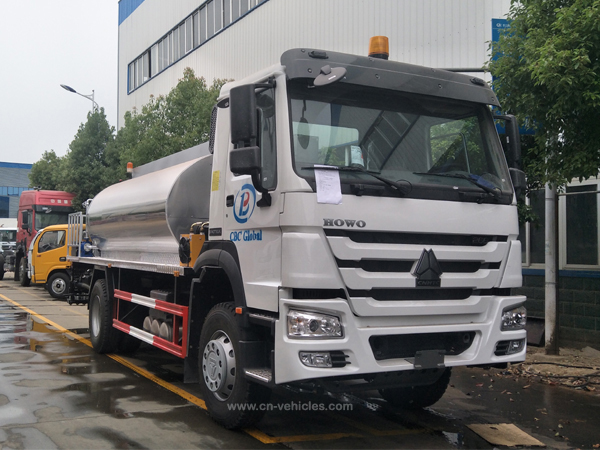

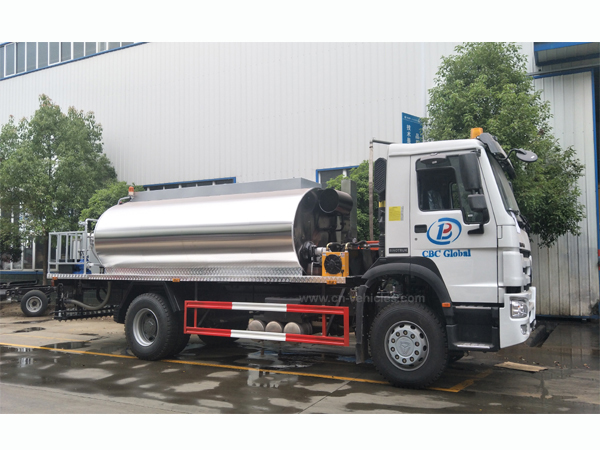

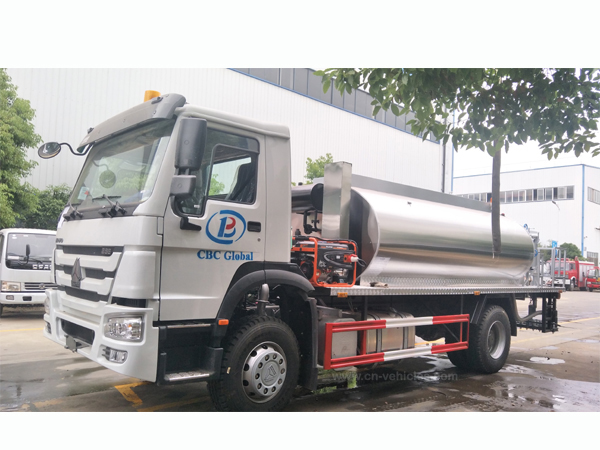

Sinotruck howo 4x2 10 tons Asphalt Distribution Truck Bitumen Tank Truck
Intelligent Asphalt Distributor Truck is a machine specially designed for construction and curing of asphalt road surfaces, which is widely applied in operation, such as transport and distribution of high-temperature liquid asphalt, emulsified asphalt and modified asphalt.

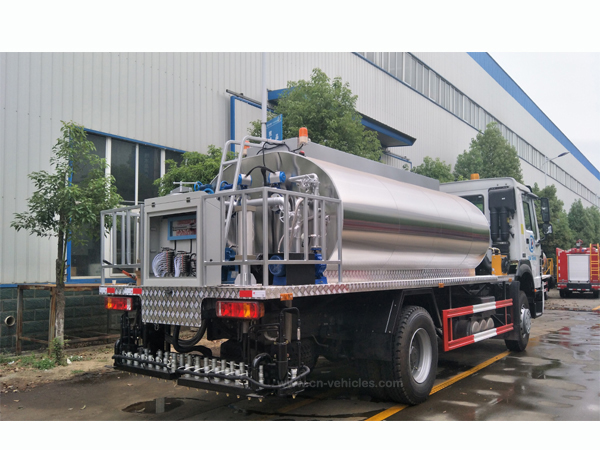

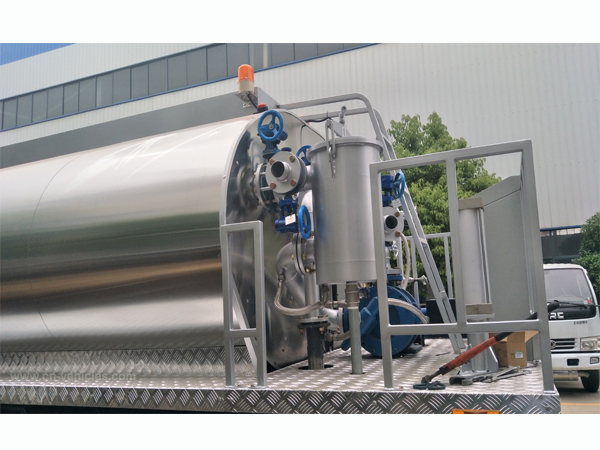

The operation of the asphalt pump is controlled by hydraulic system and the transmission is stable, enabling safe and reliable operation. Asphalt can be sprayed evenly via the rear spray bar or the handheld spray bar according to the actual construction. Spraying via the rear spray bar is automatically controlled by the computer. The spray rate is under computerized control and is accurate. The asphalt pump and piping use heat transfer oil for heating and thermal insulation. The pipes and nozzles are flushed by compressed air, in order to avoid being clogged. The maximum spray width is up to 6m, and the spraying operation is high-efficiency and easy, with safe and reliable service behavior.
1.Siemens control sysem inported typical of control prcision(error≤1%)
2.High intelligentized of control system,imported burner form Italy

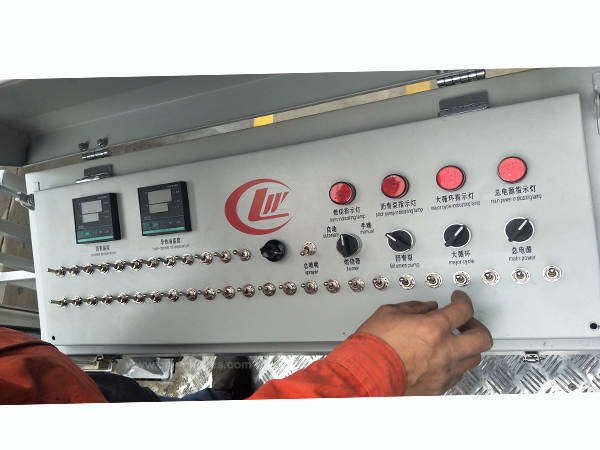

3.Imported truck element for speed measurement and imported 7" full-color resistacecontrolling panel.
4.Front and rear controlling platforms,for alternative use to ensure work.
5. High-end design and fabrication for rust prevention and corrosion prevention
|
ITEM |
UNIT |
PARAMETER |
|
|
Vehicle |
|
Howo Asphalt Distributor |
|
|
Overall dimensions |
mm |
8335x2480x3050 |
|
|
Tank dimention |
mm |
3750/2350/1550 /ellipse |
|
|
GVW |
kg |
Appro×18570 |
|
|
Curb weight |
Appro×8720 |
||
|
Payload |
Appro×9700 |
||
|
Wheel base |
mm |
4600 |
|
|
F/R track base |
2020/1860 |
||
|
Approach/departure angle |
° |
19/13 |
|
|
Suspension |
mm |
1430/2405 |
|
|
Max speed |
km/h |
100 |
|
|
Axle Load |
kg |
7000/16000 |
|
|
Drive system |
4x2 |
Steel |
Power, sino |
|
Tire specification |
12.00-22.5/7 units |
Number of axles |
2 |
|
Engine model |
Manufacturer |
China National Heavy Duty Truck Group Co ., Ltd |
|
|
/ |
WD615.87 |
||
|
Emission/kw |
9726ml/213Kw, 290Hp |
||
|
type |
HW15710 gearbox |
||
|
Remark |
Control in the cab, electronic control |
||
