ISUZU 700p Light 4000 Liters Water Tank Fire Fighting Special Truck

Fire engine (also called water foam fire truck, fire fighting equipment, fire appliance truck, foam fire tanker, water foam pumper, light rescue apparatus, fire fighting vehicle, foam discharging truck, foam tanker) is a vehicle designed primarily for fire fighting operations - to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximum.

Description FEEDBACK

ISUZU 700p Light 4000 Liters Water Tank Fire Fighting Special Truck



Fire engine (also called water foam fire truck, fire fighting equipment, fire appliance truck, foam fire tanker, water foam pumper, light rescue apparatus, fire fighting vehicle, foam discharging truck, foam tanker) is a vehicle designed primarily for fire fighting operations - to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximum.

Fire fighting truck can be divided into many types:

1. According to vehicle size, there are mini fire fighting truck, light fire fighting truck, medium fire fighting truck, heavy-duty fire fighting truck.
2. According to chassis drive type, there are 4X2 fire fighting truck, 6X4 fire fighting truck, 8X4 fire fighting truck, and off-road type 4X4, 6X6 fire fighting truck.
3. According to chassis brand, there are ISUZU fire fighting truck, Dongfeng dfac fire fighting truck,  Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, etc.
4. According to fire agent,  there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck.



Fire Engine ISUZU ( 4,000 Litres )

General

Vehicle Brand

CLW GROUP

Chassis Brand

ISUZU

Overall Dimension

7400 * 2600 * 3100 mm

GVW / Kerb Weight

10,000kg / 6,000kg

Cab

Cab Capacity

2+3 persons allowed

Air Conditioner

With air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU engine,4HK1

Power

190 Ps (139 KW)

Displacement

5193 ml

Emission Standard

Euro V

Chassis

Drive Type

4X2, left hand drive

Transmission

ISUZU gear box, no overhaul within 500,000km

Wheelbase/No. of axle

4175 mm / 2

Tyre Specification

8.25-16

Tyre Number

6 tyres and 1 spare tyre

Max Speed

100 km/h

Paint

Metallic paint

Superstructure

Water Capacity

4,000 Litres

Tank Material

Carbon steel

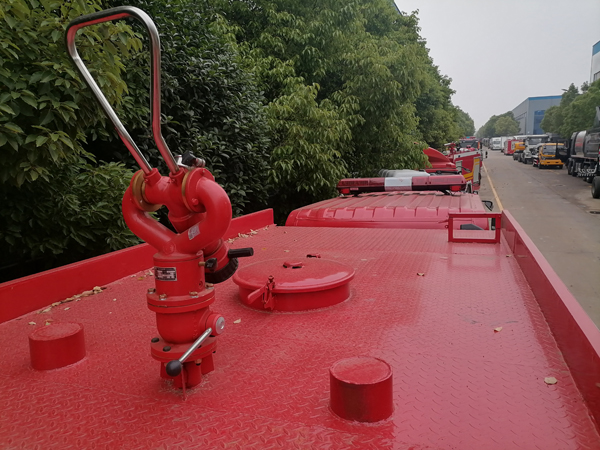

Fire Pump

30 L/s (1.0M Pa)

Flow Speed

24 L/s (1.0M Pa)

Shot

water ≥ 45 m / foam ≥ 40 m

Suction Head

6 m

Hose

High quality, wire strengthened hose, with cooper wire, anti-static

All standard accessories: Typical modern fire apparatus carries equipment for a wide range of firefighting and rescue tasks. These include ladders, pike poles, axes and cutting equipment, halligan bars, ventilating equipment, floodlights, hose ramps, self-contained breathing apparatus and general tools.…

Optional

Ladders, floodlights...
