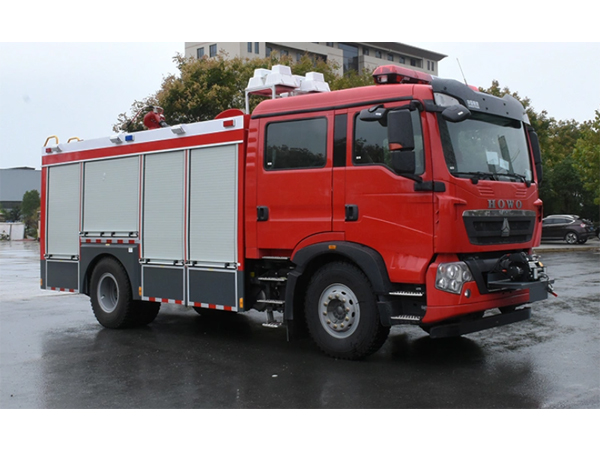

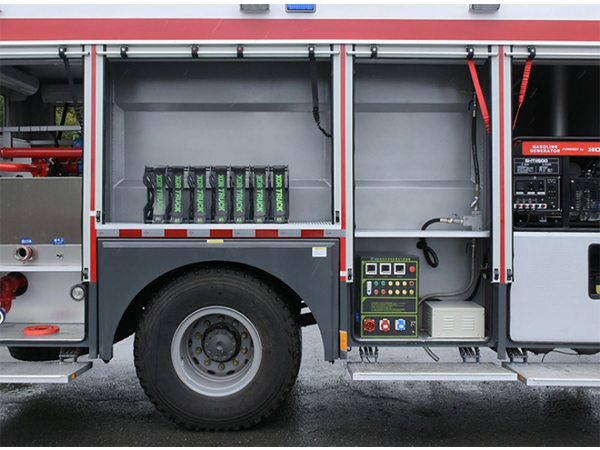

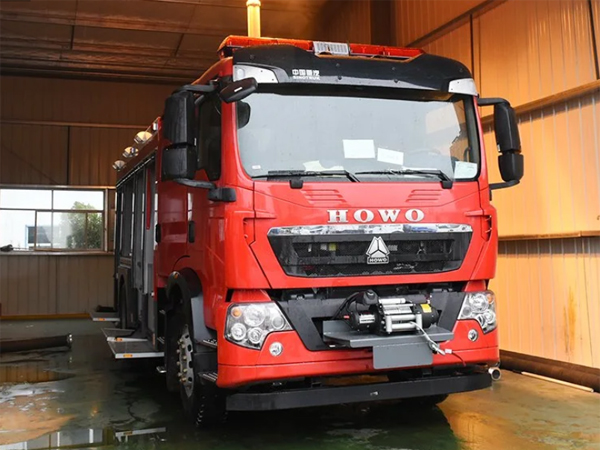

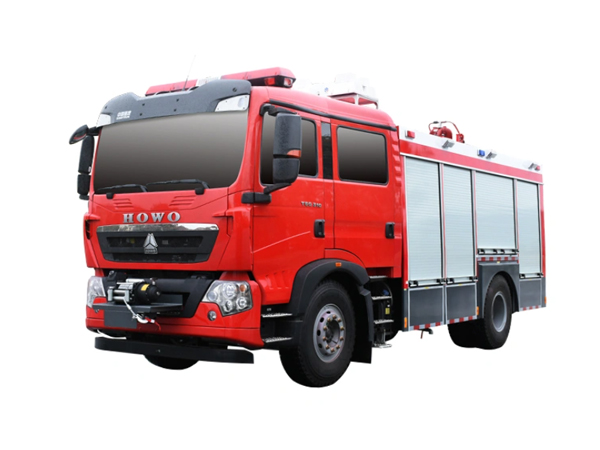

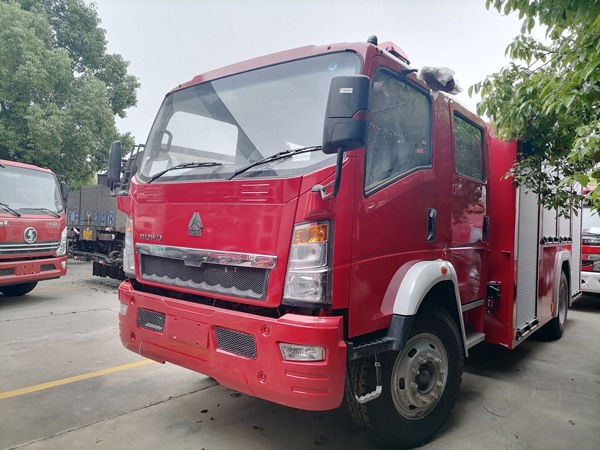

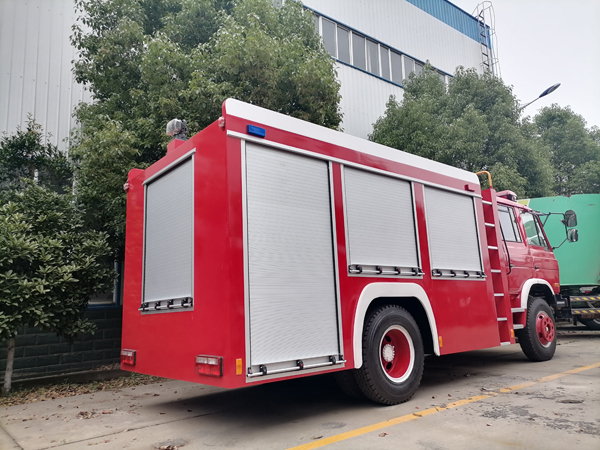

HOWO fire fighting truck is adopted SINO TRUCK HOWO chassis, equipped with SS water tank 4500L, SS foam tank 500L, 4x50kgs DCP empty extinguisher, 4x22.5kgs CO2 cylinders, telescopic light 4x1000W, 10.5kw HONDA generator, as well as standard firefighting equipment, such as aluminum ladder, forcible entry rescue tool and so on. The vehicle has crew cab and max 5 passengers inside. The body main structure is made by high quality steel and the equipment room is covered with shutter door and equips rescuer and personal protection device, which is based on the requirement.
Name | Parameter | |
Overall Dimension | 8870x 2500 x 3430mm | |
GVW | 16000KGS | |
Water Tank Capacity | 4500L | |
Foam Tank Capacity | 500L | |
Telescopic lights | 4x1000W | |
Engine Output | 290Hp | |
Emission | Euro III | |
Max Speed | 90km/h | |
Front / Rear Axle Load | 7T / 16T | |
Tire | 295/80R22.5, 6pcs+1 spare tire | |
Allowable Cab Passengers | 2+3 | |
Water Tank | ||
Tank capacity | 4500L | |
Material | SS304, side 4mm bottom 4mm | |
Tank fixing | Fixed on chassis frame | |
Manhole | One manhole with a diameter of 500 mm, with quick locking/opening device | |
Foam Tank | ||
Tank capacity | 500L | |
Material | SS304, side 4mm bottom 4mm | |
Tank fixing | Fixed on chassis frame | |
Manhole | One manhole with a diameter of 500 mm, with quick locking/opening device | |

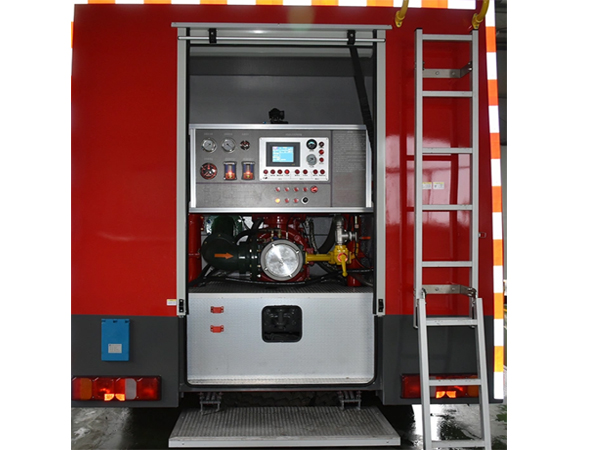

Fire Pump | ||
Fire pump model | CB40.10/6.50 | |
Water flow rate | 3000lpm@10kg/cm2 | |
360lpm@40kg/cm2 | ||
Maximum suction depth | 7m | |
Diversion device | Self-contained slide pump | |
Priming time | Maximum depth of suction < 50s | |
Fire Monitor | ||
Fire monitor model | PL48 | |
Flow rate | 48L/S, 1.0MPa | |
Covering range | water≥65m | |
Rotating Angle | 360° Horizontal Rotation | |
Max. Pitch / dip angle | pitch angle≤-35° | |
dip angle≥+75° | ||

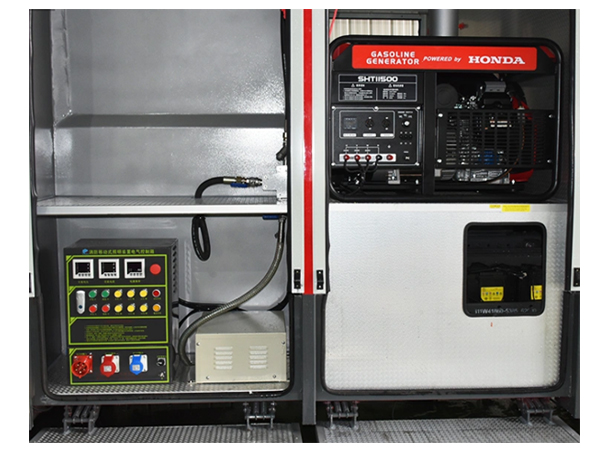

Telescopic lights & generator | ||
Lights | 4*1000W | |
Type | Pneumatically mast | |
Height | 8m | |
Generator | HONDA 10.5KW | |
Gasoline type | ||
Voltage | 220V,50HZ |
