Isuzu 15000L Oil Tank Truck with Fuel Dispenser System Petrol Diesel Delivery and Refueling Truck

1. Purpose: It used for vehicles refueling and mobile transporting Fuel/Petrol/Diesel, etc.

2. Refueling System: Oil pump, Oil dispenser machine and Hose reel with filling gun, etc.

3. Advantage: High quality with competitive price.


Description FEEDBACK

Isuzu 15000L Oil Tank Truck with Fuel Dispenser System Petrol Diesel Delivery and Refueling Truck



Product Description

1. Purpose: It used for vehicles refueling and mobile transporting Fuel/Petrol/Diesel, etc.

2. Refueling System: Oil pump, Oil dispenser machine and Hose reel with filling gun, etc.

3. Advantage: High quality with competitive price.

Product Specification

General Technical Parameters

Overall Dimension

8500*2490*3000 (mm)

Gross Vehicle Weight

16000kg

Chassis Specification

Chassis Brand

ISUZU FTR

Drive model

4*2

Cabin

Single row, Cab reversible, Left-hand Drive, with air condition.

Number of Passengers

2.

Engine

Model

4HK1-TCG40/190HP, with ABS.

Power

140KW/190HP

Emission standard

EURO 4

Displacement

5193(ml)

Fuel type

Diesel

Gearbox

ISUZU MLD-6Q, 6Forwards & 1Reverse, manual operation, with power steering.

Brake System

Oil break, with vacuum booster pump.

Wheel Base

4500mm

Front/Rear Axle Loading

6300/14000(Kg)

Overhang

Mechanical Suspension, 8/10+6.

Tire

9.00R20, steel wire tire, 6pc with 1 spare tire.

Max Driving Speed

80 km/h

Upperstructure Specification

Fuel Tank

Tank Material

Q235B Carbon Steel (Stainless Steel and Aluminum Alloy can be choosed)

Effective Volume

15CBM/15000Liter

Medium Type

Fuel(Gasoline, Diesel, etc.)

Tank Thickness

5mm

Compartment

4 compartments (optional configuration)

Manhole cover

4 units, with breath valves.

Emergency cut-off valve

4 unit.

Discharging valve

4 unit.

Lifting Ladder

2 units.

Color

According to customer‘s requirements.

Dispenser System

1, Dispenser machine;

2, Refueling retractable rubber hose reel and filling gun;

3, Pump.

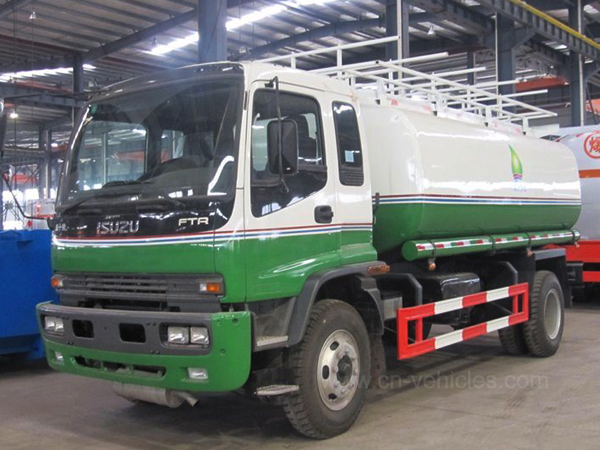

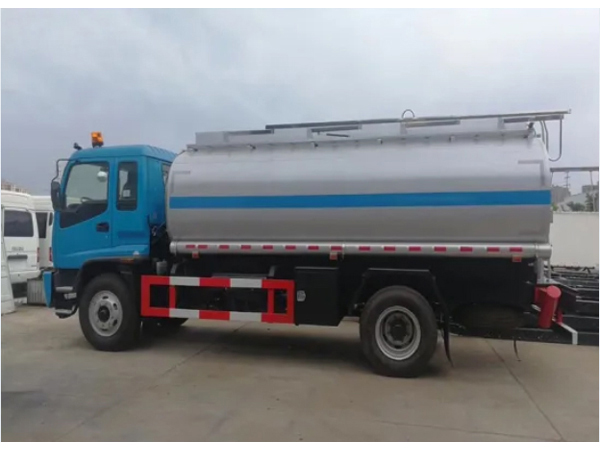

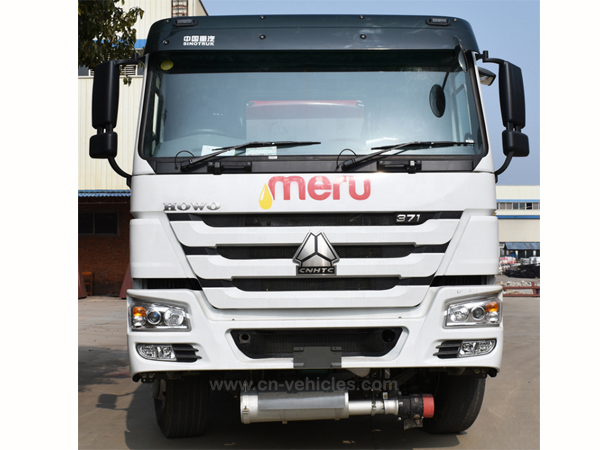

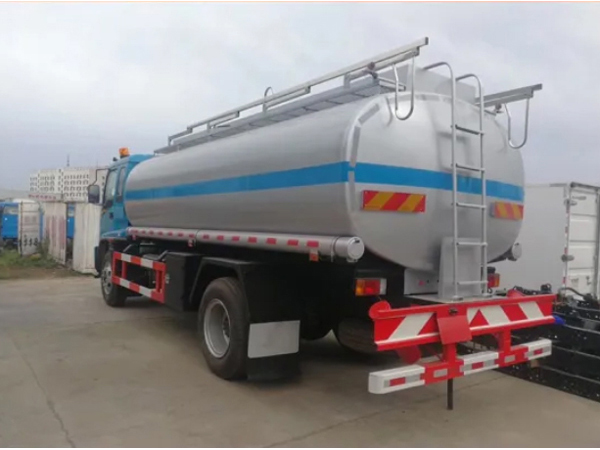

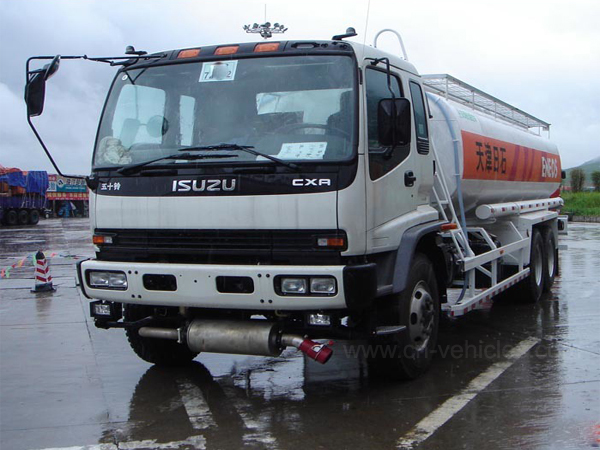

Truck picture:


WorkShop Video
