Sinotruck howo 16000Liter Foam Fire Fighting Truck Export To Salbas Oil And Gas Fire Tru in Nigeria

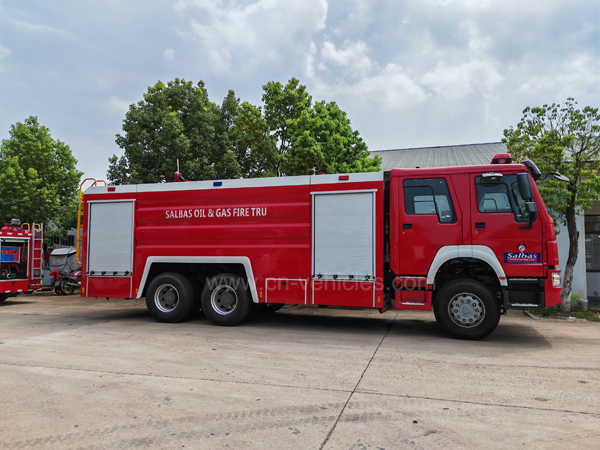

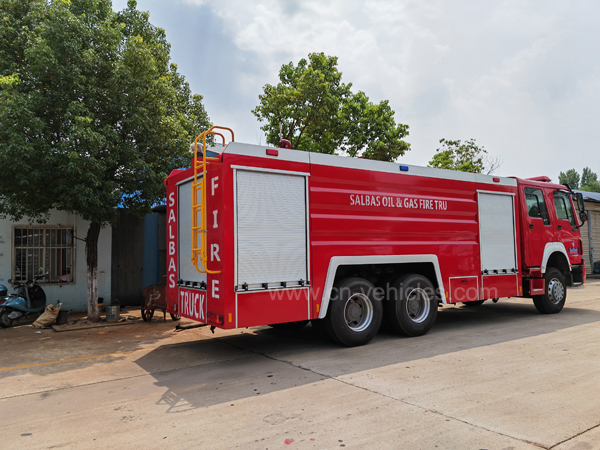

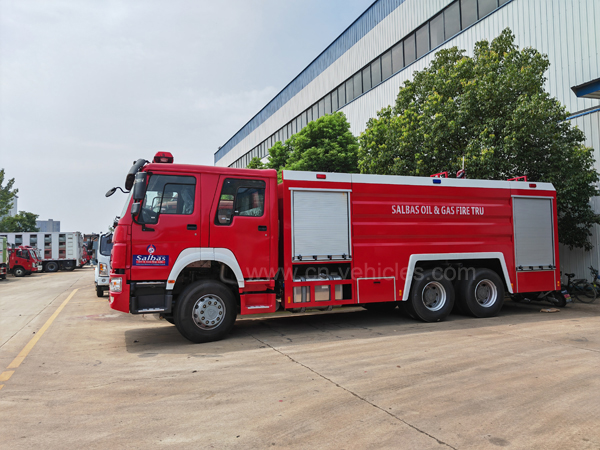

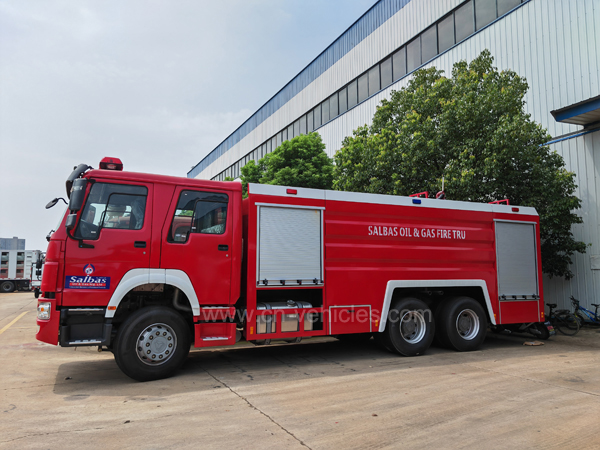

Chengli Special Automobile Co,ltd Finish 2 unit 16000liter HOWO Foam Fire Fighting Truck And Delivery To Salbas Oil And Gas Fire Tru in Nigeria
Description Get quotation

Sinotruck howo 16000Liter Foam Fire Fighting Truck Export To Salbas Oil And Gas Fire Tru in Nigeria


Chengli Special Automobile Co,ltd Finish 2 unit 16000liter HOWO Foam Fire Fighting Truck And Delivery To Salbas Oil And Gas Fire Tru in Nigeria ,Fire fighting truck is a vehicle designed primarily for fire fighting operations - to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly, which is also called  fire truck, fire fighting vehicle, water tank fire truck, fire appliance, fire engine, fire-extinguishing water truck, fire tender, fire service truck, fire water tanker.The brand we make is Dongfeng dfac , ISUZU , Sinotruck howo , JAC , Faw , Foton , Capacity from 3cbm to 20cbm .

Our Advantages:
Sinotruk HOWO chassis and engine, perfect and reliable performance
Equipped with multiple fire hose coupling and all kinds of fire fighting equipment in tool cabinet .
Independent fire pump room, ensure  the smooth progress of the work
Intelligent control integration system, manage the working state directly.

Follow is the technical sheet :
Chassis Specification
Truck Model
CLW5290GXFPM
Chassis Manufacturing Date
Year of 2022
Cab
HW76 single-bedroom cab
Driving Type
6X4 Right hand driving
Max Speed (km/h)
90
Overall Dimension (mm)
9780×2500×3470
GVW (kg)
25000
Curb Weight (kg)
13050
Wheelbase (mm)
4325+1350
Tire
Type
12.00R20
Nos
Total 11 no, including 1 spare tire
Gear box
Model
HW19710
Type
Manual
Forward Speeds
10
Rear Speeds
2
Axle
Axle Nos
3
Engine
Brand
Sinotruk
Model
WD615.69
Emission Standard
EURO 2
Fuel Type
Diesel fuel
Air Intake Form
In-line 6 cylinders, water cooling, turbocharging and intercooling, direct injection
Cylinder Nos
6
Max Output Power (kw)
247
Exhaust(ml)
9726
Max output power (hp)
336
Max torque/max torque speed (N.M/rpm)
1350N.M@1100-1600rpm
Electric system
24V


Special Function
Tank
Water Tank
Capacity
12000L
Material
Q235 Carbon steel
Configuration
Welding, there is clapboard inner.
Water level indicator
One manhole, With quick locking and opening device
One overflow valve device
One level Indicator
One drain outlet
One air breather valve
Foam Tank
Capacity
4000L
Material
Stainless steel 304
Fire Pump
Type
Normal pressure fire pump
Model
CB10/60
Flux
60l/s@1MPa
Water Monitor
Model
PL48
Flow
48 L/S
Distance
≥ 60m
Pitching Rotation Angle
-35°~ 75°
Horizontal Swing Angle
0 ~360°
PTO
Sandwich PTO, splashing-type lubricate, can put out fire when driving.
Carriage
Carriage is made of high-quality steel and Aluminum embossed sheet
Pump room
On the rear or central of truck, there are pump system and pipeline, reasonable structure. Easily operate all meters and operate-switch.
Rolling Shutter Door
Light and high quality aluminum alloy rolling shutter door, neatly open and close, good seal, low noise, beauty outside, and with one set lock.
Color
Red color
Technical Requirement
1.Fire fighting vehicle is accord with GB7965 Performance requirements and test methods for fire fighting vehicle.
2.Tank of foam and water is accord with GB39.5 General Specification for fire fighting vehicle.
3.The outside is very beautiful; the surface roughness is accord with GB39.5 General Specification for fire fighting vehicle.
4. All operating switch and meter are accord with standard nameplate.
