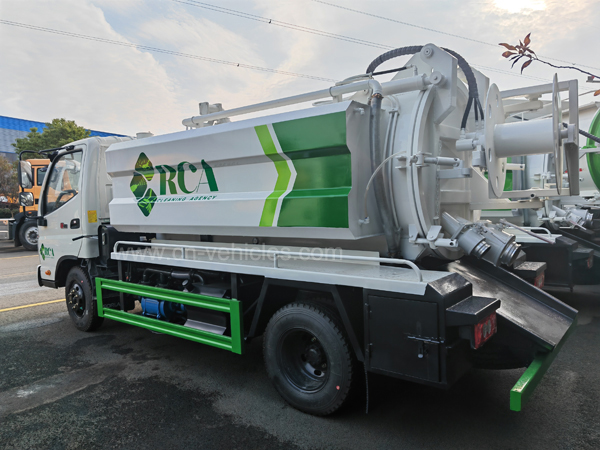

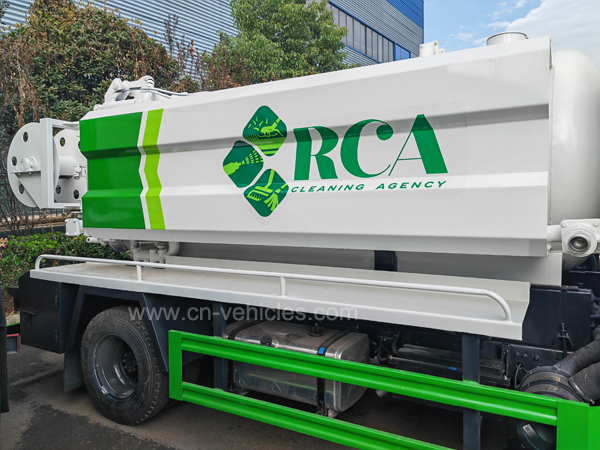

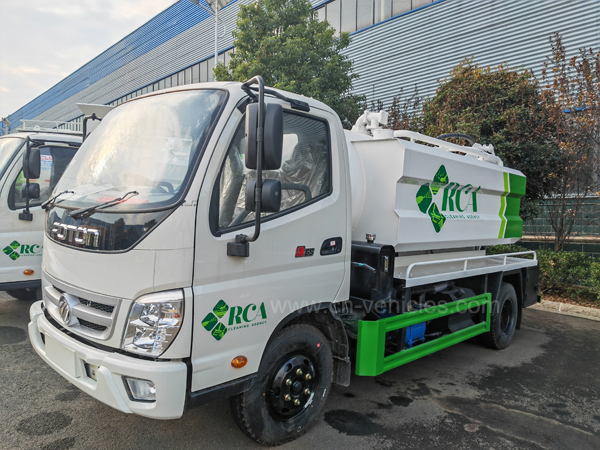

Foton RHD 6CBM High Pressure Combined Suction and Jetting Sewage Cleaner Truck
Truck Chassis Advantage:
-High Quality Chassis Series-FOTON Aumark;
-Good Quality Yuchai or Cummins Engine in 180HP ~220HP;
-FAST Gearbox Suppling large powe Output in Big Speed Ratio;
-High Speed Gear with Low Fuel Consumption.
Description Get quotation

Foton RHD 6CBM High Pressure Combined Suction and Jetting Sewage Cleaner Truck


Truck Chassis Advantage:
-High Quality Chassis Series-FOTON Aumark;
-Good Quality Yuchai or Cummins Engine in 180HP ~220HP;
-FAST Gearbox Suppling large powe Output in Big Speed Ratio;
-High Speed Gear with Low Fuel Consumption.

Sewage System Advantage:
-Large volume sewage tank 6000L with High Pressure Design;
-2000L Wate with Side Installed Design Low Gravity Center;
-Famous Italian Jurop &BP, American Moro Vacuum Pump in 2400L/Min;
-High Pressure Chinese Brand Water Pump 300L/min, 18Bar Pressure;
-Hydraulic Arm for easier sewage hose handling;
-Remote control system.

Cabin
Left rudder/half row
Whole vehicle main dimensions
Overall dimensions (LxWxH)mm
8255×2460×2820
Wheel base(mm)
43360
Weight data
Curb weight(kg)
5440
Gross vehicle weight(kg)
22000
Persons in cab (persons)
2
Engine
Model
YC6A240-33
Emissions standards
Euro III
Displacement(L)
7.255L
Rated Power
177
Max torque
900
Gearbox
Model
8JS105TA
Clutch
Type
Single dry diaphragm spring
Front axle
Type
5.5.T
Rear axle
Type/Mainreducetion ratio
10T/4.875
Suspension
Front suspension/Leaf spring number
Non-independent suspension longitudinal plate spring /10
Rear suspension/Leaf spring number
Non-independent suspension longitudinal plate spring /10+8
Brake system
Service brake
Drum-type pneumatic brake
Parking brake
Barely able to brake
Basic equipment
Hydraulic Turnover/Cruise + 135A.H Battery/Manual Air Conditioners/Tuberless Tire (Inch) 11R22.5/ Manual Doors, Windows and Rearview Mirrors /MP3 / Power Steering/Knit Shock Absorber Seat (Spring)
