 Sinotruck howo 10000liter Foam Tanker Firefighting Truck
  •  Sinotruck howo 10000liter Foam Tanker Firefighting Truck
  •  Sinotruck howo 10000liter Foam Tanker Firefighting Truck
  •  Sinotruck howo 10000liter Foam Tanker Firefighting Truck
  •  Sinotruck howo 10000liter Foam Tanker Firefighting Truck
  •  Sinotruck howo 10000liter Foam Tanker Firefighting Truck
  •  Sinotruck howo 10000liter Foam Tanker Firefighting Truck
 Sinotruck howo 10000liter Foam Tanker Firefighting Truck
 Sinotruck howo 10000liter Foam Tanker Firefighting Truck
Description FEEDBACK

Sinotruck howo 10000liter Foam Tanker Firefighting Truck

Fire Fighting Truck which is also called water fire engine , Water Foam fire truck , fire fighting equipment , fire appliance truck , Foam Fire Tanker , Water Foam Pumper , Light rescue Apparatus , Fire fighting vehicle , Foam Discharging truck , Foam Tanker Fire truck , Is a special Vehicle designed primarily for fire fighting operations and to extinguish fire efficiently to prevent fire spread , reducing the loss caused by fire maximumly .


HOWO Foam Fire Truck Technical Date

Cab

Chassis Brand

Sinotruck howo

Overall Dimension

6860*2210*2880mm

Cabin

 Double

Air Conditioner

With

Chassis

Drive Type

4*2

Steering Wheel

Left Hand Driver

Transmission

Manual

Wheelbase

4600mm

Tyre Specification

295/80R22.5

Tyre No.

6+1

Max Speed

98km/h

Paint

Red or as request

Engine

Fuel Type

Diesel

Engie Model

WD615.62

Engine Brand

HOWO

Power

266HP

Displacement

9.726L

Emmission Standard

Euro 3

Superstructure

Water Tank

8000L

Foam Tank

2000L

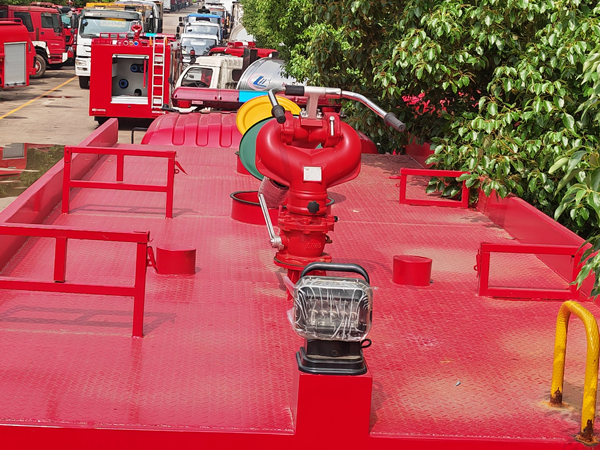

Fire Monitor

Model

PL48

Flow

48L/s

Rang

Water≥60m  Foam≥55 m

Pressure

1.0Mpa

Rotation angle

Horizontal ≥270°, pitch -20°70°

Foam Proportioner

Type

Ring pump

Mixing ratio

6%

Fire Pump

Model

CB10/60

Flow

60L/s

Pressure

1.0Mpa

Water Delivery time

≤50s

Installation form

Rear

Components And Accessories

Equipment name

Quantity

Unit

Water Suction Pipe

4000mm*2

pcs

Water Strainer

1

pcs

Water Segregator

1

pcs

Water Collector

1

pcs

65×20m Soft-wall fire hose

8

pcs

80×20m Soft-wall fire hose

4

pcs

Reducing interface

2

pcs

Shaped interface

1

pcs

Fire Axe

1

pcs

Hose protector

4

pcs

Groud Hydrant-wrench

1

pcs

Undergroud hydrant-wrench

1

pcs

Suction pipe wrench

2

pcs

Fire water gun

2

pcs

Fire bucket

1

pcs

Air foam gun

1

pcs

Foam gun

1

pcs

Fire extinguisher

1

pcs

shovel

1

pcs

Fire waist axe

1

pcs

Tick

1

pcs

Shovel

1

pcs
