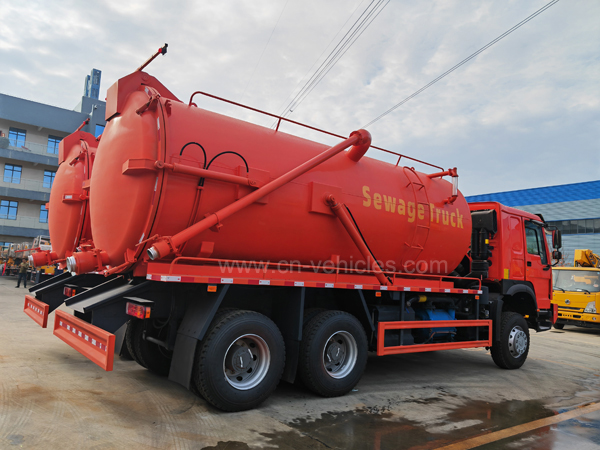

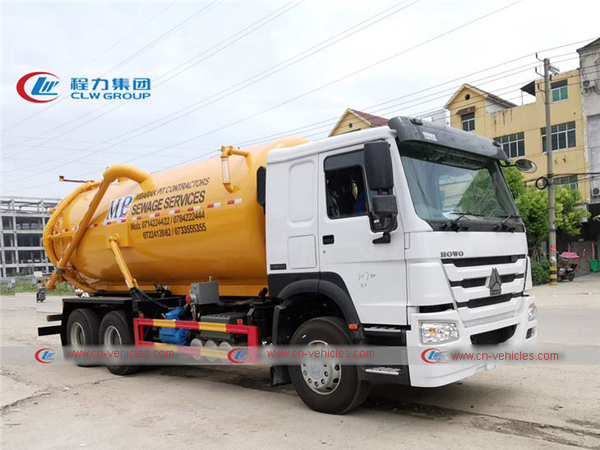

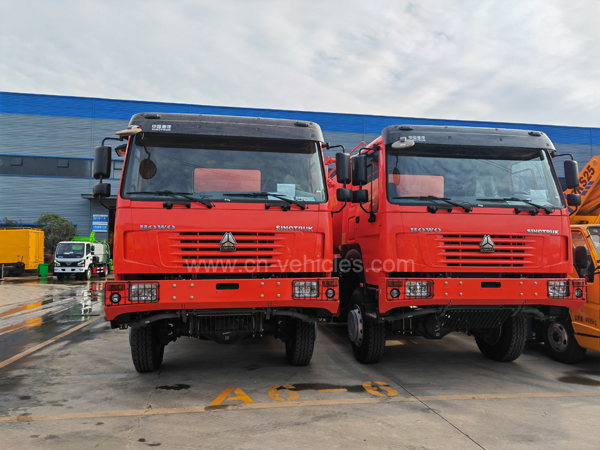

Sinotruk HOWO 12wheeler Full Drive 20cbm Sewage Suction Vacuum Truck
  • Sinotruk HOWO 12wheeler Full Drive 20cbm Sewage Suction Vacuum Truck
  • Sinotruk HOWO 12wheeler Full Drive 20cbm Sewage Suction Vacuum Truck
  • Sinotruk HOWO 12wheeler Full Drive 20cbm Sewage Suction Vacuum Truck
  • Sinotruk HOWO 12wheeler Full Drive 20cbm Sewage Suction Vacuum Truck
  • Sinotruk HOWO 12wheeler Full Drive 20cbm Sewage Suction Vacuum Truck
  • Sinotruk HOWO 12wheeler Full Drive 20cbm Sewage Suction Vacuum Truck

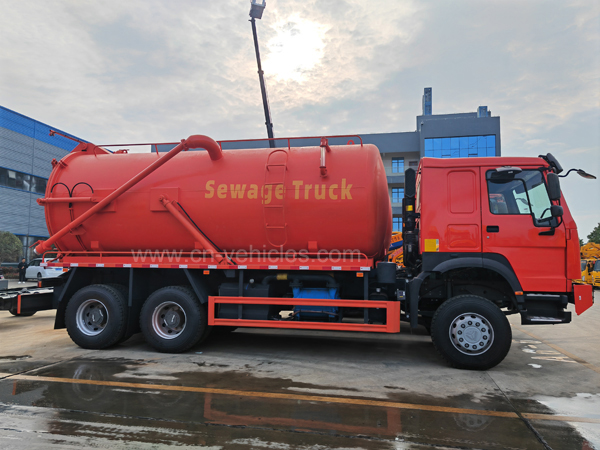

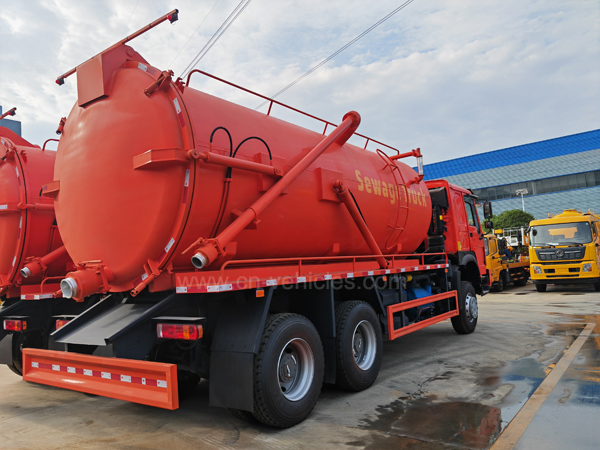

Sinotruk HOWO 12wheeler Full Drive 20cbm Sewage Suction Vacuum Truck
The Vacuum truck models have been designed using the latest technology specifically for local operating conditions. Each model in the range is built to handle the toughest cleanups, including sewerage, line cleaning, industrial sumps and slurries, wet ash, excavation material, and toxic waste or other dangerous materials. Each is designed with focus on a specific application, and there is definitely a model available to meet your requirements.
Description Get quotation

Sinotruk HOWO 12wheeler Full Drive 20cbm Sewage Suction Vacuum Truck



The Vacuum truck models have been designed using the latest technology specifically for local operating conditions. Each model in the range is built to handle the toughest cleanups, including sewerage, line cleaning, industrial sumps and slurries, wet ash, excavation material, and toxic waste or other dangerous materials. Each is designed with focus on a specific application, and there is definitely a model available to meet your requirements.

1. Purpose: It used for city and factory sewer cleaning, it‘s one of our sanitation truck series. Our mission is assist urban sanitation project and make world cleaning!

2. Main parts: Water pump and High pressure water cleaning nozzles tc.

3. Features: It can adopts high pressure water for flushing sewer.

4.10000 liters sewage vacuum suction truck with 4000 liters high pressure water tank

Truck Specification

truck model

CLW5253GXWT3

Cab

HW76 Flat-top single row cab, with power steering. Electronic flameout, A/C

Driving Type

6x6 Left hand driving

Max Speed (km/h)

90

Overall dimension(mm)

9420×2500×3455

GVW( kg)

25000

Mass in working order ( kg)

13575

Wheelbase(mm)

4625+1350

F/R track base (mm)

2022/1830

F/R overhang (mm)

1500/2380

Approach/Departure Angel

16/14

Tire

295/80R22.5 (10+1)

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

10-speed

Bridge

Front axle

7T

Rear axle

13T+13T

Enging

Model

WD615.69

Fuel Type

Diesel fuel

Type

Water-cooled six-stroke,, direct injection, turbocharged

Exhaust(ml)

9726

Max output power/rotate speed (hp /rpm )

336/2200

Max torque/rotate speed(N.m/rpm)

1350/1100~1600

Braking  system

Service Brake

Compressed air brake

Park Brake

Spring energy

Auxiliary brake

engine exhaust brake

Eletric system

24v

Upper-Body  specification

Volume of tank

18m³ /20m3

Color

Painted in the corporation‘s colours with logo on both front doors as specified by the client

Material of tanker

5mm Carbon stell (Q235)

Special function

Suction height

≥9(m)

Suction time

250(S)

Maximum Inclination Angle

≥45°

maximum vacuum

≥11 MPa

Lifting time

≤45 S

the Cover opening Angle

≥75°

The cover opening time

≤25 S

Suction pipe

3m length and 100 mm in diameter

Hose Racks

Fitted on both sides of tank, to accommodate a minimum of seven hoses each

Fittings

Four-way change valve fitted to pump
Drain separator
vacuum pump

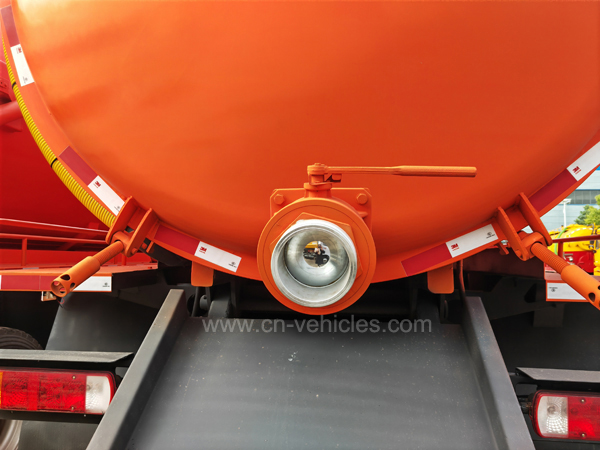

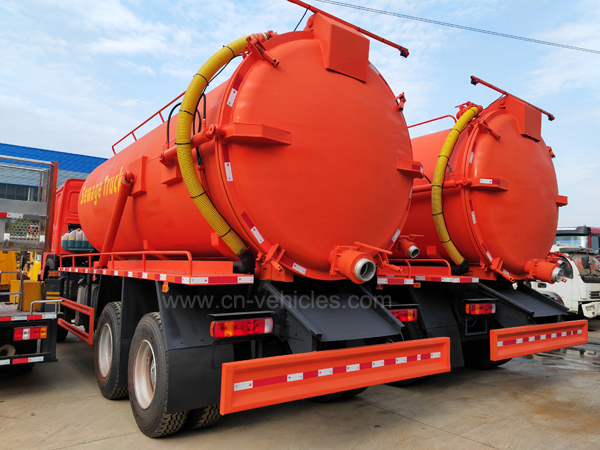

Fully opening rear door
Sight glasses at top and bottom of tank
Ladder: For access to top of tank complete with cat walk on top of tank

vacuum pump


pump type

SK-30

motor power (kW)

11

weight (Kg)

460

pump speed (r.p.m)

1440

suction pressure (MPa)

5.4

diameter (mm)

80

Brief introduction of function

It is formed of PTO, transmission shaft, vacuum pump, tanker, hydraulic system and pipe system.
